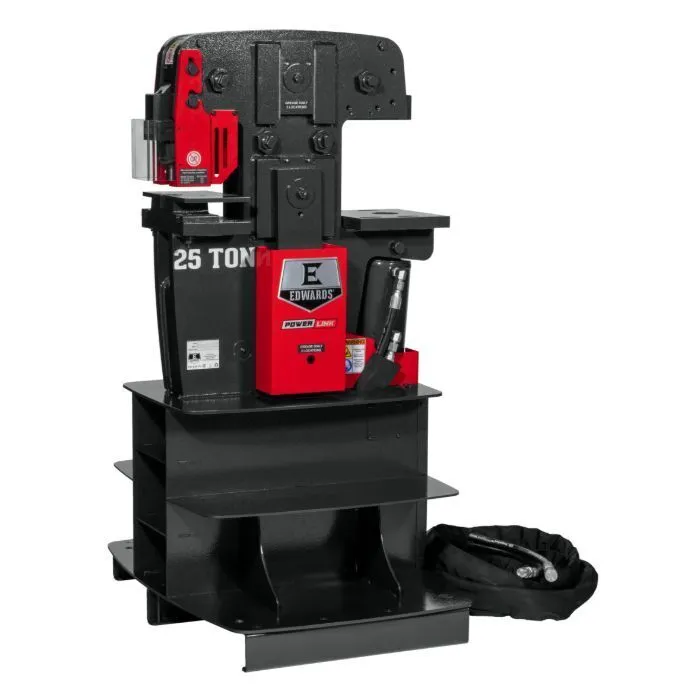

The 25 Ton Dual Station increases the Edwards PowerLink Tool offering further expanding the value of the Edwards PowerLink System. A perfect addition to an Edwards Ironworker with PowerLink System increases the users capabilities with the two additional workstations saving time and money. The 25 Ton Dual Station provides full Ironworker functions to users who may not need a larger tonnage machine operated with the Portable Power Unit opening up the full line of Hydraulic Tools to the user.
| Punch Tonnage | 25 T | 22,679.6 kg |
| Punch Max. Capacity | 1 diam. in 5/16 mild steel | 1 diam. in 5/16 mild steel |
| Punch - Work Height | 36.75" | 933.45 mm |
| Punch - Throat Depth | 5" | 127 mm |
| Punch - Stroke | 1 in. | 1 in. |
| Open Station - Work Height | 34-3/4 in. | 34-3/4 in. |
| Open Station - Throat Depth | 5 in. | 5 in. |
| Electrics | 230v, 3-Phase ** | 230v, 3-Phase ** |
| Shipping Dimensions | 30 x 48 x 57 in. | 30 x 48 x 57 in. |
| Dimensions | 25 x 34-1/2 x 51 in. | 25 x 34-1/2 x 51 in. |
| Weight | 836 lbs. | 836 lbs. |
** Portable Power Unit
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
Optional Models:
ED9-HAT2500: 25 Ton Dual Station
ED9-HAT2510: 25 Ton Dual Station and Portable Power Unit 1 Phase, 230 Volt
ED9-HAT2530: 25 Ton Dual Station and Portable Power Unit 3 Phase, 460 Volt
Optional Items - Call for price:
ED9-PRB12: Press Brake Tooling 12" Press Brake
ED9-HAT1000: 10 Ton Tube/Pipe Bender
ED9-HAT5000: Radius Roller
