| Pressure | 20 T | 18,143.7 kg |
| Stroke Length | 10" | 254 mm |
| Cylinder | 2.25" | 57.15 mm |
| Motor | 5 HP | 5 HP |
| Phase | 3-Phase | 3-Phase |
| Voltage | 575v | 575v |
| Table Dimensions | 24" x 42" | 24" x 42" |
| Work Height | 38" - 40" | 38" - 40" |
| Tooling - Pin Diameter | 2" | 50.8 mm |
| Tooling - Dimensions | 9.79" min to 13.54" max (tool chuck to pin centers) | 9.79" min to 13.54" max (tool chuck to pin centers) |
| Tooling - Pin Height | 6" max (standard tooling) | 6" max (standard tooling) |
| Tooling Head | 1/2" T Nut/Set Screw and American Standard Brake Punch Tooling | 1/2" T Nut/Set Screw and American Standard Brake Punch Tooling |
| Hydraulic Pump | 3-1/2 GPM - 1 Stage | 3-1/2 GPM - 1 Stage |
| Valve Pressure | 2750 psi | |
| Reservoir | 7 gal | 26.5 L |
| Shipping Weight | 1,350 lb | 612.4 kg |
| Stroke Length | 10" | 254 mm |
| Weight | 1,350 lbs. | 1,350 lbs. |

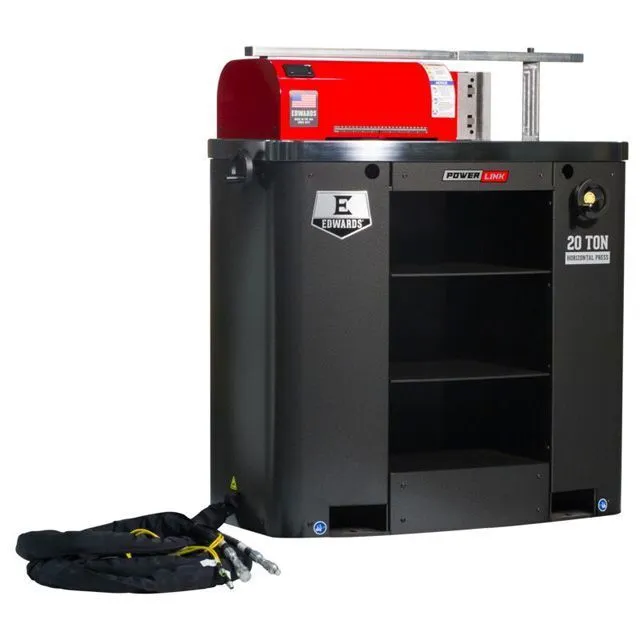

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
