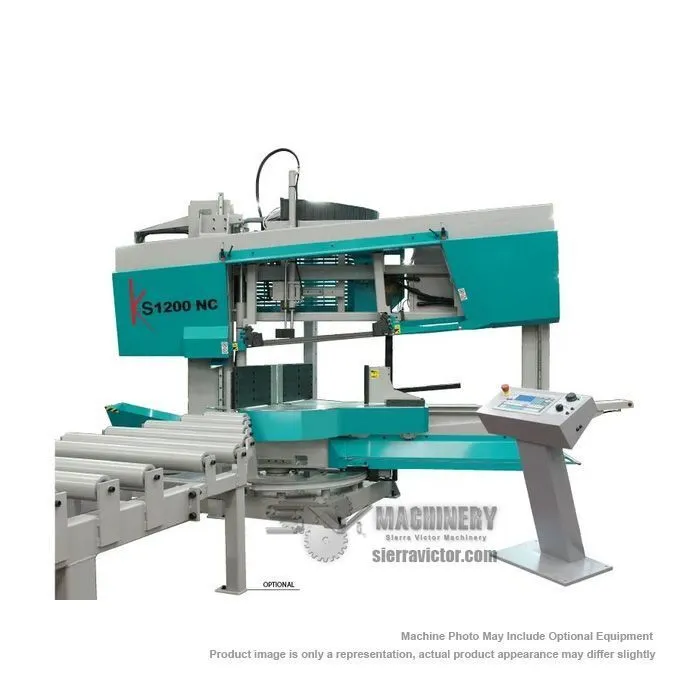

KMT SAW KS700, KS800 and KS1200-NC Double Column Semi-Automatic Mitering Bandsaws has a range of round cutting capacities from 20"-26". Heavy duty mitering bandsaws for structural steel. Automatic mitering up to 60 degrees left and right.
| Cutting Capacity Round | 26.75 / 22.75 / 26.75 / 21.5 in. (45°R/60°R/45°L/60°L) | 26.75 / 22.75 / 26.75 / 21.5 in. (45°R/60°R/45°L/60°L) |
| Cutting Capacity Square | 23.5 / 20.75 / 23.5 / 17.5 in. (45°R/60°R/45°L/60°L) | 23.5 / 20.75 / 23.5 / 17.5 in. (45°R/60°R/45°L/60°L) |
| Cutting Capacity Rectangle | 33 x 23.5 / 21.5 x 17.5 / 34.25 x 23.5 / 21.5 x 17.5 in. (45°R/60°R/45°L/60°L) | 33 x 23.5 / 21.5 x 17.5 / 34.25 x 23.5 / 21.5 x 17.5 in. (45°R/60°R/45°L/60°L) |
| Round at 0° | 26.75" | 679.45 mm |
| Square at 0° | 25 in. | 25 in. |
| Rectangle at 0° | 49 x 23-1/2 in. | 49 x 23-1/2 in. |
| Blade Size | H 2" x s.062 x L 26' 8-1/2" | H 2" x s.062 x L 26' 8-1/2" |
| Blade Speed | 50-295 FPM | 50-295 FPM |
| Blade Motor | 10 HP | 10 HP |
| Power | 230v, 208v, 460v, 3-Phase (Please Specify) | 230v, 208v, 460v, 3-Phase (Please Specify) |
| Work Height | 33.75" | 857.25 mm |
| Vise Opening | 50" | 1,270 mm |
| Largest Beam Capacity | W 36 | W 36 |
| Dimensions | W 77 x L 157 in. | W 77 x L 157 in. |
| Weight | 7,500 lbs. | 7,500 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Optional items - Call for price:
Conveyors priced per application
