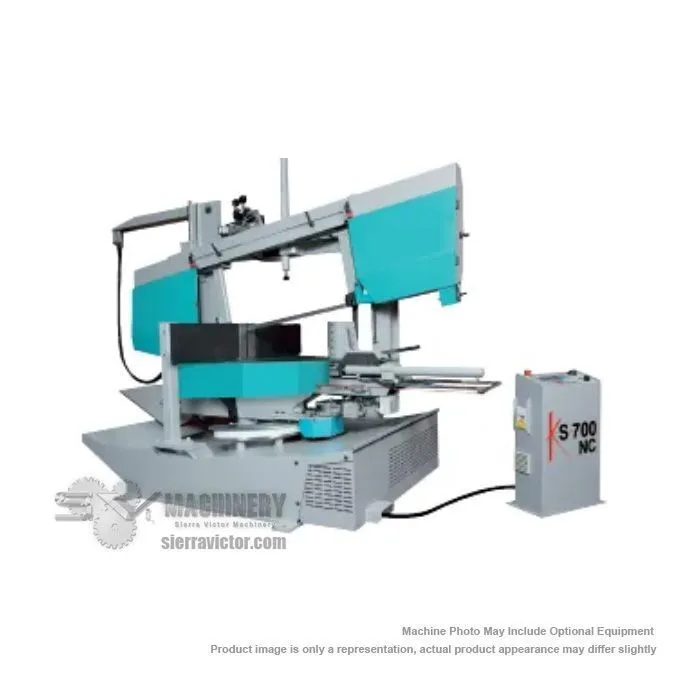

KMT SAW KS700, KS800 and KS1200-NC Double Column Semi-Automatic Mitering Bandsaws has a range of round cutting capacities from 20"-26". Heavy duty mitering bandsaws for structural steel. Automatic mitering up to 60 degrees left and right.
| Cutting Capacity Round | 21.5 / 14.5 / 21.5 / 14.5 in. (45°R/60°R/45°L/60°L) | 21.5 / 14.5 / 21.5 / 14.5 in. (45°R/60°R/45°L/60°L) |
| Cutting Capacity Square | 21.5 / 14.5 / 21.5 / 14.5 in. (45°R/60°R/45°L/60°L) | 21.5 / 14.5 / 21.5 / 14.5 in. (45°R/60°R/45°L/60°L) |
| Cutting Capacity Rectangle | 21.5 x 22-2/4 / 14.5 x 23.5 / 21.5 x 23.5 / 14.5 x 17.5 in. (45°R/60°R/45°L/60°L) | 21.5 x 22-2/4 / 14.5 x 23.5 / 21.5 x 23.5 / 14.5 x 17.5 in. (45°R/60°R/45°L/60°L) |
| Round at 0° | 26.75" | 679.45 mm |
| Square at 0° | 25 in. | 25 in. |
| Rectangle at 0° | 32-1/4 x 24 in. | 32-1/4 x 24 in. |
| Blade Size | H 2" x s.062 x L 23' 5" | H 2" x s.062 x L 23' 5" |
| Blade Speed | 50-330 fpm | 50-330 fpm |
| Blade Motor | 10 HP | 10 HP |
| Power | 230v, 208v, 460v, 3-Phase (Please Specify) | 230v, 208v, 460v, 3-Phase (Please Specify) |
| Work Height | 31.5" | 800.1 mm |
| Vise Opening | 33" | 838.2 mm |
| Largest Beam Capacity | W 30 | W 30 |
| Dimensions | W 81 x L 142 in. | W 81 x L 142 in. |
| Weight | 6,850 lbs. | 6,850 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Optional items - Call for price:
Conveyors priced per application
