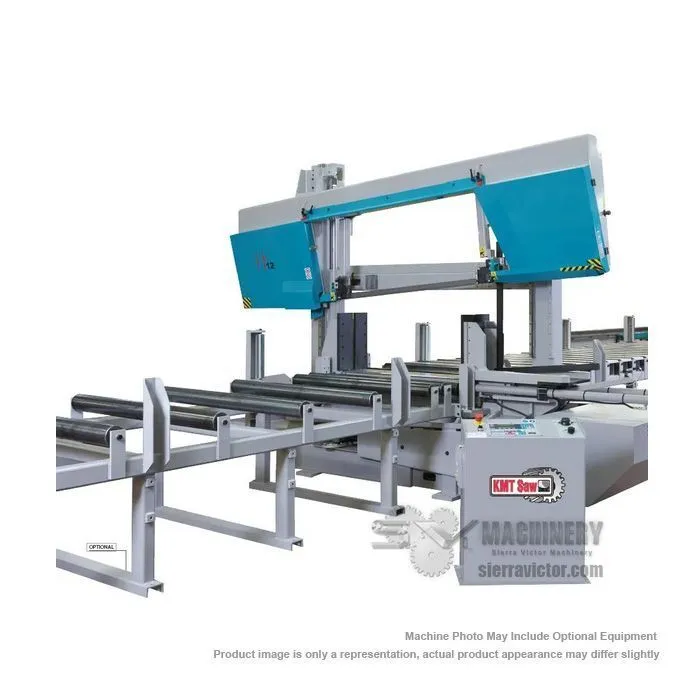

NEW KMT SAW H 12 SA

Florida, United States
3,895Listings|10Followers
Overview
Horizontal Band Saws

KMT SAW H7SA, H8SA and H12SA Double Column Semi-Automatic Band Saws have round cutting capacities ranging from 20" to 26". When a heavy duty bandsaw is needed for structural steel look no further than the H7 SA, H8 SA or the H12 SA. Standard equipment includes One Bi-metal saw blade, Low voltage control, TEFC 3 phase drive motor, Totally enclosed worm gear transmission, Full Coolant System, Full Blade Guarding, Operators Manual Parts List/Schematics and Tool kit.

Specs
Round at 0°
26.75"
679.45 mm
Square at 0°
25 in.
25 in.
Rectangle at 0°
23.5 x 49 in.
23.5 x 49 in.
Blade Size
H 2" x s.062" x L 26' 8.5"
H 2" x s.062" x L 26' 8.5"
Blade Speed
50-330 fpm
50-330 fpm
Blade Motor
10 HP
10 HP
Power
208v, 230v, 460v, 3-phase (Please Specify)
208v, 230v, 460v, 3-phase (Please Specify)
Work Height
33.5"
850.9 mm
Vise Opening
50"
1,270 mm
Dimensions
W 57 x L 158 in.
W 57 x L 158 in.
Weight
7,500 lbs
7,500 lbs

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

Equipped With

Optional Items - Call for price:
* AC600: 10' Conveyor
* AC625: 5' Conveyor with coolant tray
* AC116: Spray mist coolant
