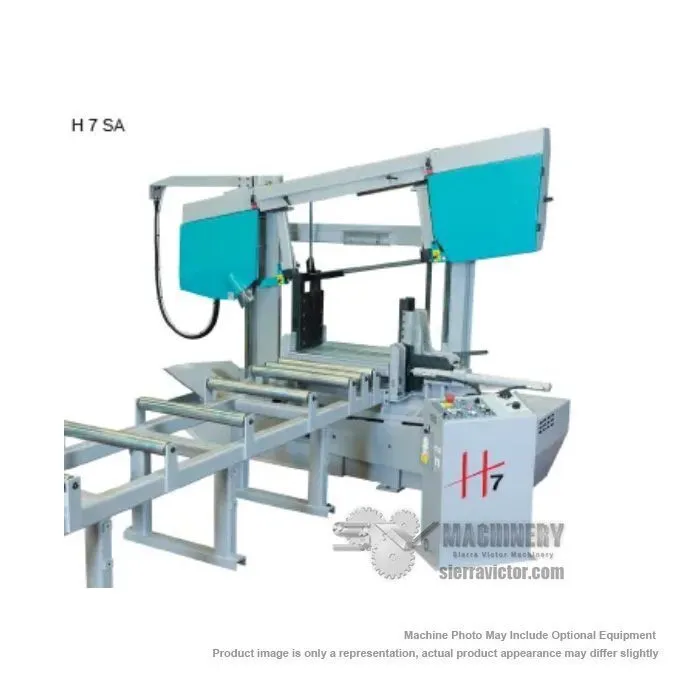

KMT SAW H7SA, H8SA and H12SA Double Column Semi-Automatic Band Saws have round cutting capacities ranging from 20" to 26". When a heavy duty bandsaw is needed for structural steel look no further than the H7 SA, H8 SA or the H12 SA. Standard equipment includes One Bi-metal saw blade, Low voltage control, TEFC 3 phase drive motor, Totally enclosed worm gear transmission, Full Coolant System, Full Blade Guarding, Operators Manual Parts List/Schematics and Tool kit.
| Round at 0° | 26.75" | 679.45 mm |
| Square at 0° | 25 in. | 25 in. |
| Rectangle at 0° | 24 x 32-1/4 in. | 24 x 32-1/4 in. |
| Blade Size | H 1.5" x s.050" x L 23' 10" | H 1.5" x s.050" x L 23' 10" |
| Blade Speed | 50-330 fpm | 50-330 fpm |
| Blade Motor | 7.5 HP | 7.5 HP |
| Power | 208v, 230v, 460v, 3-phase (Please Specify) | 208v, 230v, 460v, 3-phase (Please Specify) |
| Work Height | 31.5" | 800.1 mm |
| Vise Opening | 33" | 838.2 mm |
| Dimensions | W 61 x L 142 in. | W 61 x L 142 in. |
| Weight | 6,850 lbs. | 6,850 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Optional Items - Call for price:
* AC600: 10' Conveyor
* AC625: 5' Conveyor with coolant tray
* AC116: Spray mist coolant
