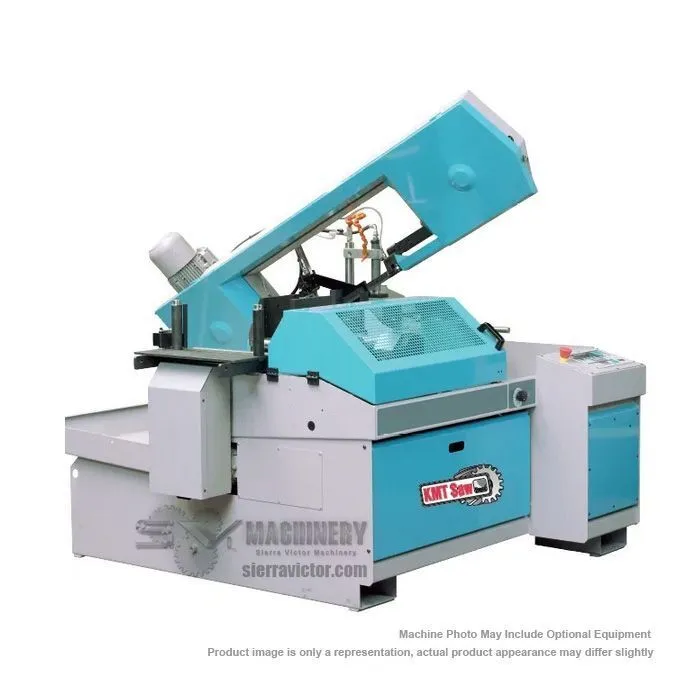

KMT SAW H400A-NC Automatic Bandsaws have a 12 inch round cutting capacity. The H400 A-NC has additional features: Job memory and Ball screw feeder +/- 0.005" per index Fully automatic, fully hydraulic heavy one piece unified construction for superb alignment and accuracy.
| Round at 0° | 12" | 304.8 mm |
| Square at 0° | 10-1/4 in. | 10-1/4 in. |
| Rectangle at 0° | 7-3/4 x 13-1/4 in. | 7-3/4 x 13-1/4 in. |
| Round at 45°R | 10" | 254 mm |
| Square at 45°R | 9 in. | 9 in. |
| Rectangle at 45°R | 7-3/4 x 9 in. | 7-3/4 x 9 in. |
| Round at 60°R | 6.75" | 171.45 mm |
| Square at 60°R | 6 in. | 6 in. |
| Rectangle at 60°R | 4 x 6-1/2 in. | 4 x 6-1/2 in. |
| Blade Motor | 3 HP | 3 HP |
| Blade Speed | 60-360 FPM | 60-360 FPM |
| Saw Blade Size | H 1.25" x s.042 x L 13' 2" | H 1.25" x s.042 x L 13' 2" |
| Power | 230v/3-ph, 208v/3-ph, 460v/3-ph (Specify) | 230v/3-ph, 208v/3-ph, 460v/3-ph (Specify) |
| Vise Opening | 15" | 381 mm |
| Material Working Height | 37" | 939.8 mm |
| Dimensions | W 86 x L 70 in. | W 86 x L 70 in. |
| Weight | 2,100 lbs. | 2,100 lbs. |
*Work Height (from floor to table top)
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Optional items - call for price:
* AC200: 5' x 15" wide freestanding conveyor (additional 5' sections can bolt together)
* AC102: 6' Worktable conveyor infeed/outfeed mounted to machine w/ coolant tray
* AC103: Additional 6' connecting to AC102
* AC116: Spray mist coolant
