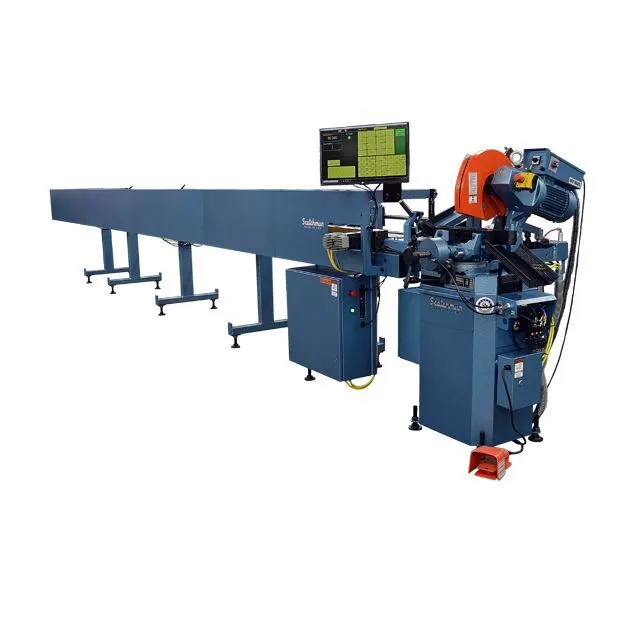

The new CPO 350 Auto Loader from Scotchman is a fully automatic sawing system guaranteed to save time, reduce scrap and eliminate costly mistakes.We’ve taken our semi-automatic CPO 350 PKPD saw and added an auto loading system creating a fully automatic sawing system which can cut multiple lengths of tube (max 3” dia.).This saw comes standard with a Windows based touch screen control, 5hp variable rpm speed motor, 315mm diameter blade, and the ability to run unlimited cut lists from 1/2” to 23’ lengths.
| Material Type | Ferrous/Non-Ferrous | Ferrous/Non-Ferrous |
| Max Blade Diameter | 350 mm | 13.78" |
| Round Solid at 90° | 1-3/4 in. | 1-3/4 in. |
| Square Solid at 90° | 1-1/2 in. | 1-1/2 in. |
| Round Tube at 90° | 3 in. | 3 in. |
| Square Tube at 90° | 3 in. | 3 in. |
| Round Solid at 45° | 1-3/4 in. | 1-3/4 in. |
| Square Solid at 45° | 1-1/2 in. | 1-1/2 in. |
| Round Tube at 45° | 3 in. | 3 in. |
| Square Tube at 45° | 2-5/8 in. | 2-5/8 in. |
| Motor | 5 HP | 5 HP |
| Power | 230v/460v, 3-phase (must specify voltage) ** | 230v/460v, 3-phase (must specify voltage) ** |
| Arbor Bore Size | 40 mm | 1.5748" |
| Air Pressure | 90 lbs. minimum | 90 lbs. minimum |
| Pin Spacing | 4/12/64 | 4/12/64 |
| Length Tolerance | ±0.010 repeatability | ±0.010 repeatability |
| Squareness Tolerance | ±0.002 per diameter inch | ±0.002 per diameter inch |
| Supply Table | 24 ft | 24 ft |
| Shipping Weight | 2,784 lb | 1,262.8 kg |
| Dimensions | (L) 362 x (W) 48 x (H) 57 in. (with saw) | (L) 362 x (W) 48 x (H) 57 in. (with saw) |
| Weight | 2,784 lbs. (with saw) | 2,784 lbs. (with saw) |
* Specify Ferrous or Non-Ferrous
** Specify Voltage
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 2 YEAR – Parts (CPO Saw) / 1 YEAR - Parts (AutoLoader)
