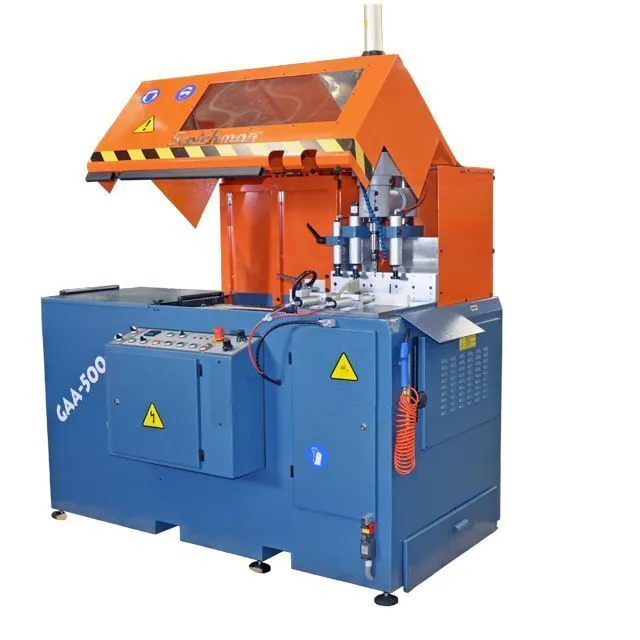

Scotchman Industries is excited to feature the Drill Tap option for their GAA-500 90, Automatic Upcut Circular Cold Saw. The GAA-500-90 is a large capacity upcut automatic saw for cutting non-ferrous materials at 90° up to 6” square and round. The saw uses a shuttle feed design with an adjustable vertical and horizontal clamp system to fit almost any profile.Standard features include a 7.5 hp motor that delivers a cutting speed of 3,000 rpm, pneumatic mist coolant system, and a base designed with 2 chip extraction ports. The rotary dial allows for fast and easy length adjustments and part lengths are easily held to the length tolerance of +/- .006” per index.
| Material Type | Non-Ferrous | Non-Ferrous |
| Max Blade Diameter | 20" | 508 mm |
| Round at 90° | 6 in. (150 mm) | 6 in. (150 mm) |
| Square at 90° | 6 x 6 in. (150 x 150 mm) | 6 x 6 in. (150 x 150 mm) |
| Rectangular at 90° | 10 x 3 in. (250 x 75 mm) | 10 x 3 in. (250 x 75 mm) |
| Motor | 7.5 HP | 7.5 HP |
| Power | 460v, 3-phase ** | 460v, 3-phase ** |
| Cutting Speed | 3,000 RPM | 3,000 RPM |
| Arbor Bore Size | 1.97" | 50.038 mm |
| Height from Floor to Vise | 38.625" | 981.07 mm |
| Length Tolerance | + or - 0.006" per index | + or - 0.006" per index |
| Maximum Diameter Hole | 20 mm | 0.7874" |
| Shipping Weight | 992 lb | 450 kg |
| Dimensions | W 77 x D 42 x H (Top of Hood) 39 in. | W 77 x D 42 x H (Top of Hood) 39 in. |
| Weight | 992 lbs. | 992 lbs. |
** Available Voltages:
1103: GAA 500-90 DT20 NF 20" AUTO UPCUT - 230V 3 PH (3000 RPM)***
1104: GAA 500-90 DT20 NF 20" AUTO UPCUT - 460V 3 PH (3000 RPM)***
1105: GAA 500-90 CNC DT20 NF 20" AUTO UPCUT - 230V 3 PH (3000 RPM)***
1106: GAA 500-90 CNC DT20 NF 20" AUTO UPCUT - 460V 3 PH (3000 RPM)***
***INCLUDES FACTORY INSTALLATION
Optional Items - Call for price:
Carbide-Tipped Blades: Scotchman offers carbide-tipped saw blades in stock for immediate delivery
Carbide-Tipped Blade Sharpening: Scotchman offers a fast, high quality blade sharpening service
10' and 20' Material Supply Track
