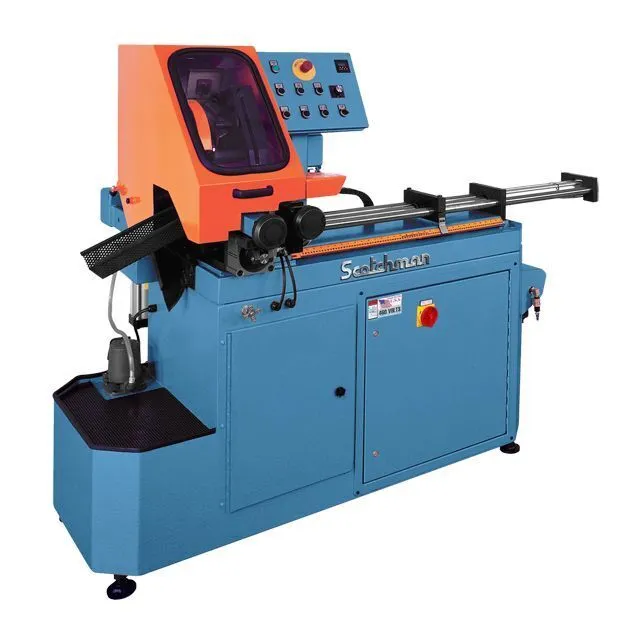

NEW SCOTCHMAN CPO 315 HFA NF

Florida, United States
Asking Price
USD $42,795.00
1 available
3,895Listings|10Followers
Overview
Circular Cold Saws

Scotchman Industries' CPO 315 Hitch Feed Automatic Cold Saw is a fully automatic circular cold saw that provides uninterrupted cutting on tubing or solids and supplies the highest quality of cuts. This machine is ideal for high volume and short length applications that require very accurate and clean cuts. This machine uses a 12-1/2" blade and has the ability to cut pieces as short as 1/8" and as long as 90". This Hitch Feed saw uses a 30" index that can be run a maximum of three times.

Specs
Material Type
Non-Ferrous
Non-Ferrous
Max Blade Diameter
12.5"
317.5 mm
Round Tube
Up to 3-1/2 in. ( ≤ 89 mm) *
Up to 3-1/2 in. ( ≤ 89 mm) *
Square Tube
Up to 3-1/8 x 3-1/8 in. ( ≤ 79 mm) *
Up to 3-1/8 x 3-1/8 in. ( ≤ 79 mm) *
Round Solid
Up to 1-3/4 in. ( ≤ 44.5 mm) *
Up to 1-3/4 in. ( ≤ 44.5 mm) *
Square Solid
Up to 3-1/2 in. ( ≤ 89 mm) *
Up to 3-1/2 in. ( ≤ 89 mm) *
Minimum Cut Length
1/8 in.
1/8 in.
Maximum Cut Length
Single Index 30 in. / Double Index 60 in. / Triple Index 90 in.
Single Index 30 in. / Double Index 60 in. / Triple Index 90 in.
Motor
5 HP
5 HP
Power
460v, 3-phase **
460v, 3-phase **
Cutting Speed
3,000 RPM
3,000 RPM
Arbor Bore Size
40 mm
1.5748"
Air Pressure
90 lbs. Minimum
90 lbs. Minimum
Pin Spacing
4/12/64
4/12/64
Length Tolerance
+ or - 0.006 in. per index
+ or - 0.006 in. per index
Squareness Tolerance
+ or - 0.002 in. per diameter inch
+ or - 0.002 in. per diameter inch
Shipping Weight
1,770 lb
802.9 kg
Dimensions
L-100 x W-44 x H-64 in.
L-100 x W-44 x H-64 in.
Weight
1770 lbs.
1770 lbs.

* Cutting Capacities Based on Mild Steel
** Available Voltages:
047000: CPO 315 HFA NF - 230V 3 PH (3000 RPM)
047010: CPO 315 HFA NF - 460V 3 PH (3000 RPM)

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 2 YEAR – Parts

Equipped With

Optional Items - Call for price:
10' and 20' Material Supply Track
Digital Read-out for Quick Easy Length Setting
Mist Coolant
Form Jaws for Multiple Tubes
Flood Coolant
