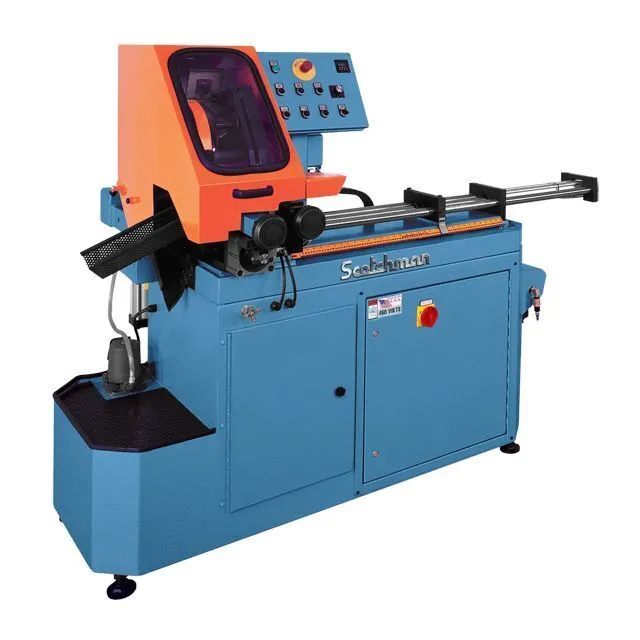

Scotchman Industries' CPO 315 Hitch Feed Automatic Cold Saw is a fully automatic circular cold saw that provides uninterrupted cutting on tubing or solids and supplies the highest quality of cuts. This machine is ideal for high volume and short length applications that require very accurate and clean cuts.This machine uses a 12-1/2" blade and has the ability to cut pieces as short as 1/8" and as long as 90". This Hitch Feed saw uses a 30" index that can be run a maximum of three times.
| Material Type | Ferrous | Ferrous |
| Max Blade Diameter | 12.5" | 317.5 mm |
| Round Tube | Up to 3-1/2 in. ( ≤ 89 mm) * | Up to 3-1/2 in. ( ≤ 89 mm) * |
| Square Tube | Up to 3-1/8 x 3-1/8 in. ( ≤ 79 mm) * | Up to 3-1/8 x 3-1/8 in. ( ≤ 79 mm) * |
| Round Solid | Up to 1-3/4 in. ( ≤ 44.5 mm) * | Up to 1-3/4 in. ( ≤ 44.5 mm) * |
| Square Solid | Up to 1-1/2 x 1-1/2 in. ( ≤ 37 x 37 mm) * | Up to 1-1/2 x 1-1/2 in. ( ≤ 37 x 37 mm) * |
| Minimum Cut Length | 1/8 in. | 1/8 in. |
| Maximum Cut Length | Single Index 30 in. / Double Index 60 in. / Triple Index 90 in. | Single Index 30 in. / Double Index 60 in. / Triple Index 90 in. |
| Motor | 5 HP | 5 HP |
| Power | 460v, 3-Phase ** | 460v, 3-Phase ** |
| Cutting Speeds | Variable Speed 11 to 177 rpm | Variable Speed 11 to 177 rpm |
| Arbor Bore Size | 40 mm | 1.5748" |
| Air Pressure | 90 lbs. Minimum | 90 lbs. Minimum |
| Pin Spacing | 4/12/64 | 4/12/64 |
| Length Tolerance | + or - 0.006 in. per index | + or - 0.006 in. per index |
| Squareness Tolerance | + or - 0.002 in. per diameter inch | + or - 0.002 in. per diameter inch |
| Shipping Weight | 1,770 lb | 802.9 kg |
| Dimensions | L-100 x W-44 x H-64 in. | L-100 x W-44 x H-64 in. |
| Weight | 1770 lbs. | 1770 lbs. |
* Cutting Capacities Based on Mild Steel
** Available Voltages:
045000: CPO 315 HFA - 230V 3 PH (VARIABLE SPEED 11-177 RPM)
045035: CPO 315 HFA - 460V 3 PH (VARIABLE SPEED 11-177 RPM)
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 2 YEAR – Parts
Optional Items - Call for price:
10' and 20' Material Supply Track
Digital Read-out for Quick Easy Length Setting
Mist Coolant
Form Jaws for Multiple Tubes
Flood Coolant
