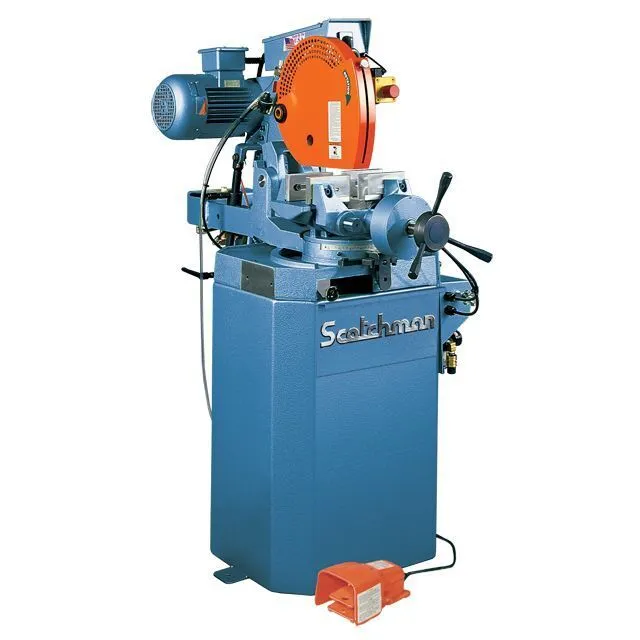

NEW SCOTCHMAN CPO 350 NF PKPD
Overview
Description
Scotchman Industries powerful American-made 14 inch CPO 350 NF PKPD Circular Cold Saw is the perfect machine for any fabrication shop cutting non-ferrous materials like aluminum, plastic, copper, etc. It is equipped with a pneumatic power down feed with electric controls and an emergency stop button. It has 180 degree mitering ability and a miter-locking device which automatically stops at 45 degrees left, 90 degrees straight, and 45 degrees right, giving it the ability to slot and notch.
Specifications
| Material Type | Non-Ferrous | Non-Ferrous |
|---|---|---|
| Max Blade Diameter | 350 mm | 13.78" |
| Round Solid at 45° | 2-1/2 in. (64 mm) | 2-1/2 in. (64 mm) |
| Round Solid at 90° | 3 in. (76 mm) | 3 in. (76 mm) |
| Square Solid at 45° | 2-1/2 x 2-1/2 in. (64 x 64 mm) | 2-1/2 x 2-1/2 in. (64 x 64 mm) |
| Square Solid at 90° | 3 x 3 in. (76 x 76 mm) | 3 x 3 in. (76 x 76 mm) |
| Round Tube at 45° | 4-1/4 in. (108 mm) | 4-1/4 in. (108 mm) |
| Round Tube at 90° | 4-1/2 in. (114 mm) | 4-1/2 in. (114 mm) |
| Square Tube at 45° | 4 x 4 in. (102 x 102 mm) | 4 x 4 in. (102 x 102 mm) |
| Square Tube at 90° | 4-1/4 x 4-1/4 in. (108 x 108 mm) | 4-1/4 x 4-1/4 in. (108 x 108 mm) |
| Rectangle Tube at 45° | 4 x 4 in. (102 x 102 mm) | 4 x 4 in. (102 x 102 mm) |
| Rectangle Tube at 90° | 5-1/2 x 4 in. (140 x 102 mm) | 5-1/2 x 4 in. (140 x 102 mm) |
| Motor | 5 HP | 5 HP |
| Power | 460v, 3-phase * | 460v, 3-phase * |
| Blade Speed | 3,000 RPM | 3,000 RPM |
| Coolant System | Yes | Yes |
| Coolant Capacity | 1 gal | 3.8 L |
| Arbor Size | 40 mm | 1.5748" |
| Vice Style | Power Double Self-Centering | Power Double Self-Centering |
| Head Miter | 45° Left and 45° Right | 45° Left and 45° Right |
| Pin Spacing | 4/12/64 | 4/12/64 |
| Height not including handle | 56.25" | 1,428.7 mm |
| Height from floor to vise | 37.438" | 950.91 mm |
| Shipping Weight | 725 lb | 328.9 kg |
| Dimensions | W 21-7/8 x D 43-1/2 in. | W 21-7/8 x D 43-1/2 in. |
| Weight | 725 lbs. | 725 lbs. |
*Available Voltages:
076043: CPO 350 NF/PK/PD - 208V 3 PH (3000 RPM)
076827: CPO 350 NF/PK/PD - 230V 3 PH (3000 RPM)
076822: CPO 350 NF/PK/PD - 460V 3 PH (3000 RPM)
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Parts
Equipped With
Optional Items - Call for price:
* RG Digital Quick Stop: Available in 8' and 12' lengths. This Digital Quick Stop is an entry level programmable sop. It is priced right, yet very durable. Setup is as easy as entering the desired cut length and pressing go!
* Laser Saw Guide: This industrial grade laser light for circular cold saws minimizes set-up time and ensures the material is being sawed to the correct length and squareness by helping the operator see the line marked for cutting.
* Special Clamping Fixture
* Miter Locking Device: STANDARD FEATURE (not available for 275 PK or 275 PKPD models)
* 60" or 120" Material Stop Roller Conveyor Mounted with an Advanced Measuring Quick-Loc System: Designed for quick, easy and accurate length setting. Available left to right or right to left material feed.
* 10' & 20' Material Supply Track
* Carbide-Tipped Blades: Scotchman offers carbide-tipped saw blades in stock for immediate delivery.
* Carbide-Tipped Blade Sharpening: Scotchman offers a fast, high quality blade sharpening service.
