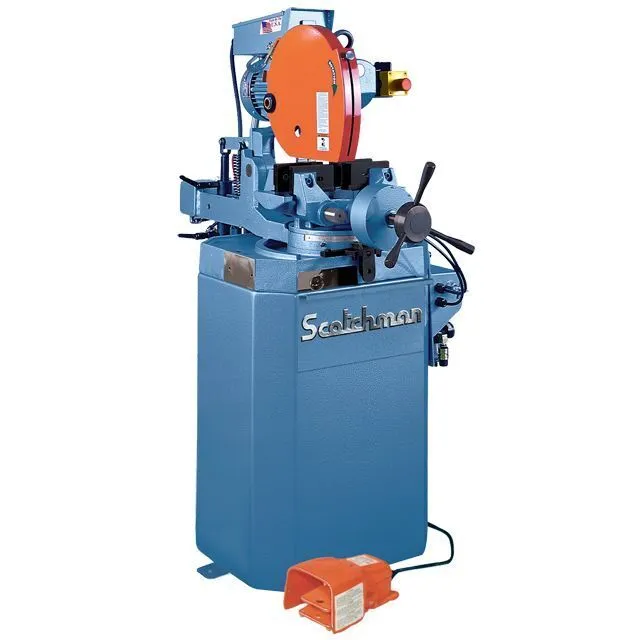

Scotchman CPO 350 PKPD, semi-automatic circular cold saw has a pneumatic power down feed with electric valves and has mitering capabilities of up to 135 degrees; 45 degrees to the right and 90 degrees to the left. This 350 mm precision saw is American-made and features double clamping and self-centering vise for maximum material hold. Scotchman's CPO 350 series of cold saws are powerful machines and can cut through solids, tubing, or pipe and produce burr-free, high-quality, high volume parts. This semi-automatic circular cold saw features electric controls, electric valves, and an electric remote foot pedal.
| Max Blade Diameter | 350" | 8,890 mm |
| Round Solid at 45° | 1-3/4 in. (44 mm) | 1-3/4 in. (44 mm) |
| Round Solid at 90° | 2 in. (51 mm) | 2 in. (51 mm) |
| Square Solid at 45° | 1-3/4 x 1-3/4 in. (44 x 44 mm) | 1-3/4 x 1-3/4 in. (44 x 44 mm) |
| Square Solid at 90° | 2 x 2 in. (51 x 51 mm) | 2 x 2 in. (51 x 51 mm) |
| Round Tube at 45° | 4 in. (102 mm) | 4 in. (102 mm) |
| Round Tube at 90° | 4-1/2 in. (114 mm) | 4-1/2 in. (114 mm) |
| Square Tube at 45° | 4 x 4 in. (102 x 102 mm) | 4 x 4 in. (102 x 102 mm) |
| Square Tube at 90° | 4-1/4 x 4-1/4 in. (108 x 108 mm) | 4-1/4 x 4-1/4 in. (108 x 108 mm) |
| Rectangle Tube at 45° | 4 x 4 in. (102 x 102 mm) | 4 x 4 in. (102 x 102 mm) |
| Rectangle Tube at 90° | 5-1/2 x 4 in. (140 x 102 mm) | 5-1/2 x 4 in. (140 x 102 mm) |
| Motor | 5 HP | 5 HP |
| Power | 230v, 3-phase (Variable Speed 11-177 rpm) ** | 230v, 3-phase (Variable Speed 11-177 rpm) ** |
| Coolant System | Yes | Yes |
| Coolant Capacity | 7 gal | 26.5 L |
| Arbor Size | 1.56" | 39.624 mm |
| Vice Style | Air Operated Power Double Self-Centering | Air Operated Power Double Self-Centering |
| Pin Spacing | 4/12/64 | 4/12/64 |
| Height not including handle | 56.25" | 1,428.7 mm |
| Height from floor to vise | 37.438" | 950.91 mm |
| Shipping Weight | 760 lb | 344.7 kg |
| Dimensions | W 21-7/8 x D 43-1/2 in. | W 21-7/8 x D 43-1/2 in. |
| Weight | 760 lbs. | 760 lbs. |
*Cutting Speeds: Must Specify when Ordering:
LT (Low Turn): designed for solid mild steel, solid stainless steel & thick wall pipe
LT (Low Turn) 22 rpm / 44 rpm, Motor rate: 3 hp
HT (High Turn): designed for thin wall tube .060 wall thickness or thinner and non-ferrous material
HT (High Turn) 44 rpm / 88 rpm, Motor rate: 2.5 hp
VS (Variable Speed) ~ wired 230/460, 3-ph
VS (Variable Speed) 11 / 177 rpm, Motor Rate: 5 hp
VS (Variable Speed) ~ wired 220, 1-ph
VS (Variable Speed) ~ 11 / 177 rpm, Motor Rate: 5 hp
SS (Single Speed): designed for 220v 1 ph applications
SS (Single Speed) 44 rpm, Motor Rate: 3 hp
**Available Voltages (please specify):
076023: CPO 350 PK/PD LT - 208V 3 PH (22/44 RPM)
076765: CPO 350 PK/PD LT - 230V 3 PH (22/44 RPM)
076767: CPO 350 PK/PD LT - 460V 3 PH (22/44 RPM)
076033: CPO 350 PK/PD HT - 208V 3 PH (44/88 RPM)
076750: CPO 350 PK/PD HT - 230V 3 PH (44/88 RPM)
076753: CPO 350 PK/PD HT - 460V 3 PH (44/88 RPM)
076593: CPO 350 PK/PD SS - 220V 1 PH (44 RPM)
076028: CPO 350 PK/PD VS - 208V 3 PH (VARIABLE SPEED 11-177 RPM)
076459: CPO 350 PK/PD VS - 230V 3 PH (VARIABLE SPEED 11-177 RPM)
076460: CPO 350 PK/PD VS - 460V 3 PH (VARIABLE SPEED 11-177 RPM)
076461: CPO 350 PK/PD VS - 220V 1 PH (VARIABLE SPEED 11-177 RPM)
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Parts
Optional Items - Call for price:
* RG Digital Quick Stop: Available in 8' and 12' lengths. This Digital Quick Stop is an entry level programmable sop. It is priced right, yet very durable. Setup is as easy as entering the desired cut length and pressing go!
* Laser Saw Guide: This industrial grade laser light for circular cold saws minimizes set-up time and ensures the material is being sawed to the correct length and squareness by helping the operator see the line marked for cutting.
* Special Clamping Fixture
* Miter Locking Device: STANDARD FEATURE (not available for 275 PK or 275 PKPD models)
* Variable Speed Control: Recommended for cutting multiple shapes, sizes and thicknesses. RPM can be fine tuned to achieve optimum blade speed for each application, and increase blade life.
* Square Tube Jaws
* 60" or 120" Material Stop Roller Conveyor Mounted with an Advanced Measuring Quick-Loc System: Designed for quick, easy and accurate length setting. Available left to right or right to left material feed.
* 10' and 20' Material Supply Track
* BLADES and SHARPENING:
Cold Saw Blades
Scotchman offers a complete selection of saw blades in stock for immediate delivery.
Cold Saw Blade Sharpening
Scotchman offers a fast, high-quality blade sharpening service and will grind blades with special tooth number.
