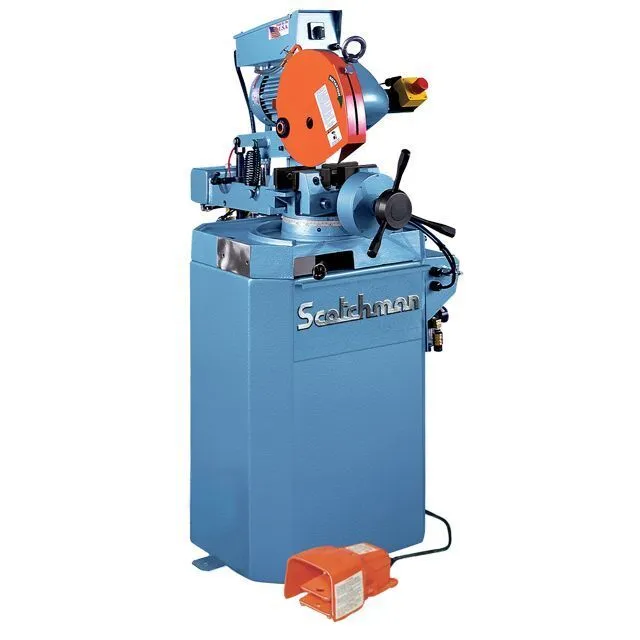

Scotchman's CPO 275 PKPD is a 10-3/4 inch semi-automatic circular cold saw that has a pneumatic power down feed with electric controls and an emergency stop button. It is equipped with a double self-centering, air-operated material vise to ensure safe, accurate, fast and efficient cuts. Featuring two cutting speeds (LT 30/60 rpm or HT 60/120 rpm), the CPO 275 PKPD also comes with a seven-gallon coolant tank and one gallon of concentrated coolant. If you are looking for a cold saw for sale, the CPO 275 PKPD can meet all of your shop's needs. Scotchman cold saws, which are Made in the U.S.A., come standard with a three-year warranty (parts only).
| Max Blade Diameter | 275 mm | 10.827" |
| Round Solid at 45° | 1 in. (25 mm) | 1 in. (25 mm) |
| Round Solid at 90° | 1-1/2 in. (38 mm) | 1-1/2 in. (38 mm) |
| Square Solid at 45° | 1 x 1 in. (25 x 25 mm) | 1 x 1 in. (25 x 25 mm) |
| Square Solid at 90° | 1-1/2 x 1-1/2 in. (38 x 38 mm) | 1-1/2 x 1-1/2 in. (38 x 38 mm) |
| Round Tube at 45° | 2 in. (51 x 51 mm) | 2 in. (51 x 51 mm) |
| Round Tube at 90° | 3-3/8 in. (86 mm) | 3-3/8 in. (86 mm) |
| Square Tube at 45° | 2 x 2 in. (51 x 51 mm) | 2 x 2 in. (51 x 51 mm) |
| Square Tube at 90° | 3 x 3 in. (76 x 76 mm) | 3 x 3 in. (76 x 76 mm) |
| Rectangle Tube at 45° | 3 x 2 in. (76 x 51 mm) | 3 x 2 in. (76 x 51 mm) |
| Rectangle Tube at 90° | 3 x 2-3/8 in. (76 x 60 mm) | 3 x 2-3/8 in. (76 x 60 mm) |
| Motor | 2 HP | 2 HP |
| Power | 460v, 3-phase (30/60 rpm) ** | 460v, 3-phase (30/60 rpm) ** |
| Coolant System | Yes | Yes |
| Coolant Capacity | 7 gal | 26.5 L |
| Arbor Size | 1.25" | 31.75 mm |
| Vice Style | Double self-centering, Air-operated | Double self-centering, Air-operated |
| Pin Spacing | 2/8/45 | 2/8/45 |
| Height not including handle | 53.25" | 1,352.5 mm |
| Height from floor to vise | 36.125" | 917.57 mm |
| Shipping Weight | 670 lb | 303.9 kg |
| Dimensions | W 21-7/8 x D 43-1/2 in. | W 21-7/8 x D 43-1/2 in. |
| Weight | 670 lbs. | 670 lbs. |
* Cutting Speeds: Must Specify when Ordering
LT (Low Turn): designed for solid mild steel, solid stainless steel and thick wall pipe
LT (Low Turn) 30 rpm / 60 rpm, Motor rate: 2.0 hp
HT (High Turn): designed for thin wall tube .060 wall thickness or thinner and non-ferrous material
HT (High Turn) 60 rpm / 120 rpm, Motor rate: 1.5 hp
SS (Single Speed): designed for 220v 1 ph applications
SS (Single Speed) 60 rpm, Motor rate: 2 hp
** Available Voltages:
076003: CPO 275 PK/PD LT - 208V 3 PH (30/60 RPM)
076519: CPO 275 PK/PD LT - 230V 3 PH (30/60 RPM)
076520: CPO 275 PK/PD LT - 460V 3 PH (30/60 RPM)
076013: CPO 275 PK/PD HT - 208V 3 PH (60/120 RPM)
076539: CPO 275 PK/PD HT - 230V 3 PH (60/120 RPM)
076540: CPO 275 PK/PD HT - 460V 3 PH (60/120 RPM)
076583: CPO 275 PK/PD SS - 220V 1 PH (60 RPM)
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Parts
Optional Items - Call for price:
* RG Digital Quick Stop: Available in 8' and 12' lengths. This Digital Quick Stop is an entry level programmable sop. It is priced right, yet very durable. Setup is as easy as entering the desired cut length and pressing go!
* Special Clamping Fixture
* Square Tube Jaws
* 60" or 120" Material Stop Roller Conveyor Mounted with an Advanced Measuring Quick-Loc System: Designed for quick, easy and accurate length setting. Available left to right or right to left material feed.
* 10' and 20' Material Supply Track
* BLADES and SHARPENING:
Cold Saw Blades
Scotchman offers a complete selection of saw blades in stock for immediate delivery.
Cold Saw Blade Sharpening
Scotchman offers a fast, high-quality blade sharpening service and will grind blades with special tooth number.
