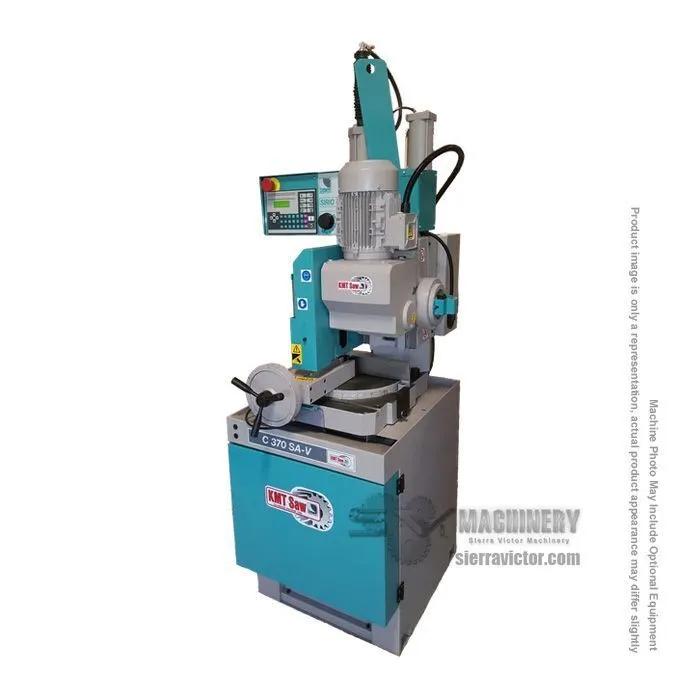

KMT SAW C370SA Vertical Column Semi-Auto Cold Saw has a 14.5" (370mm) Max Blade Diameter. The sawframe is quickly and accurately swiveled to any angle up to 45 degrees left or 60 degrees right, with a highly visible scale for optimum accurately returning to zero. Semiautomatic operation with added features: variable speed 13-89rmp, variable vise pressure, electronic depth setting.
| Max Blade Diameter | 370 mm | 14.567" |
| Round at 0° | 4.5 in. | 4.5 in. |
| Square at 0° | 4 in. | 4 in. |
| Rectangular at 0° | 4 x 7 in. | 4 x 7 in. |
| Round at 45° Left | 4.5 in. | 4.5 in. |
| Square at 45° Left | 4 in. | 4 in. |
| Rectangular at 45° Left | 4 x 5 in. | 4 x 5 in. |
| Round at 45° Right | 4 in. | 4 in. |
| Square at 45° Right | 4 in. | 4 in. |
| Rectangular at 45° Right | 4 x 5 in. | 4 x 5 in. |
| Round at 60° Right | 4.25 in. | 4.25 in. |
| Square at 60° Right | 3.75 in. | 3.75 in. |
| Rectangular at 60° Right | 3.5 x 3.5 in. | 3.5 x 3.5 in. |
| Motor | 4 HP | 4 HP |
| Power | 208v/3, 220v/3, 460v/3 (specify) | 208v/3, 220v/3, 460v/3 (specify) |
| Spindle RPM | (Variable Speed) 13-89 | (Variable Speed) 13-89 |
| Spindle Diameter | 40 mm | 1.5748" |
| Max. Vice Opening | 4.25" | 107.95 mm |
| Work Height | 36.25" | 920.75 mm |
| Shipping Weight | 1,250 lb | 567 kg |
| Dimensions | 25 w x 31 deep in. | 25 w x 31 deep in. |
| Weight | 1,250 lbs. | 1,250 lbs. |
*Capacities shown are max envelope. Each individual cutting job must be considered with regards to type and shape of material, and quantity of pieces per day.
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Optional Items - Call for price:
AC200: 5' x 15" wide freestanding conveyor (additional 5' sections can bolt together)
AC250: 5' x 15" wide conveyor mounted to machine (additional 5' sections can bolt together)
AC102: 6' Worktable conveyor infeed/outfeed mounted to machine w/ coolant tray
AC103: Additional 6' connecting to AC102
AC117: Footswitch
AC116: Spray mist coolant
AC128: Top clamp
AC330: Variable vise pressure
