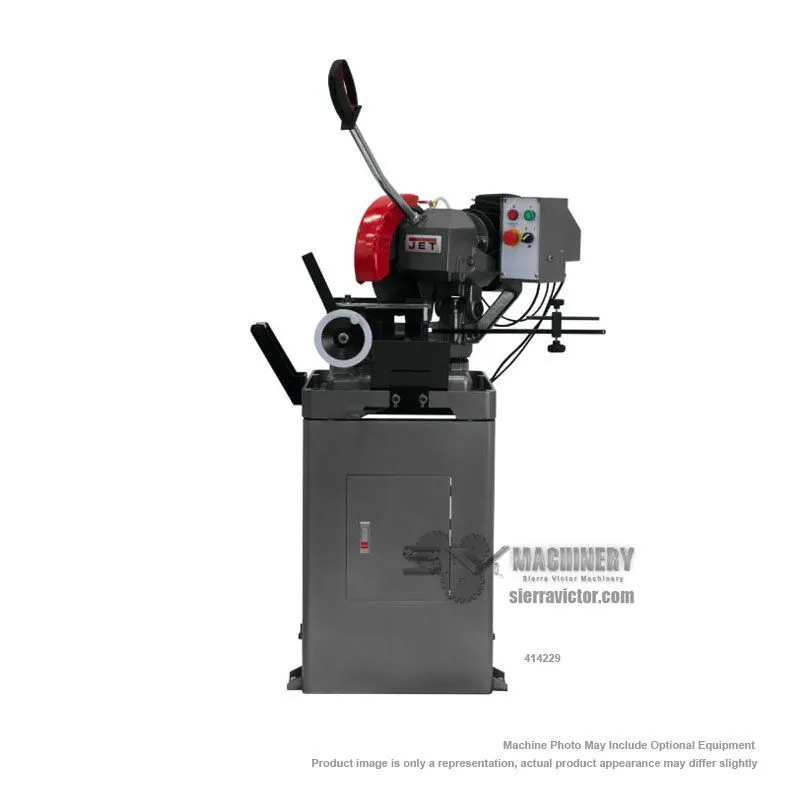

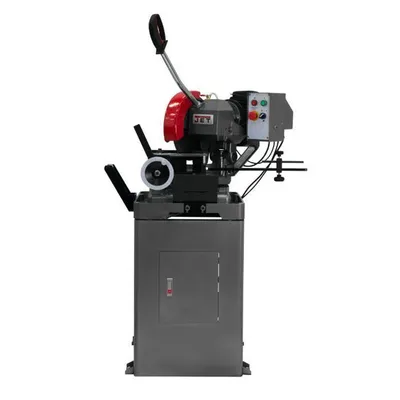

JET CS-315-1 Ferrous Manual Coldsaws deliver clean, burr-free cuts and offer machine shop and fabrication professionals a list of features and standard design characteristics that you’ve come to expect from JET. Flood Coolant system with a 1-1/3 Gallon coolant reservoir and pump with flow control system extends blade life.
| Material Type | Ferrous | Ferrous |
| Max. Blade Diameter | 315 mm | 12.402" |
| Tubing Round at 45° | 3-1/2 in. | 3-1/2 in. |
| Tubing Round at 90° | 3-1/2 in. | 3-1/2 in. |
| Solid Round at 45° | 3-1/2 in. | 3-1/2 in. |
| Solid Round at 90° | 3-1/2 in. | 3-1/2 in. |
| Tubing Rectangle at 45° | 2-1/5 x 2-3/5 in. | 2-1/5 x 2-3/5 in. |
| Tubing Rectangle at 90° | 4 x 3-1/5 in. | 4 x 3-1/5 in. |
| Solid Rectangle at 45° | 2-1/5 x 2-3/5 in. | 2-1/5 x 2-3/5 in. |
| Solid Rectangle at 90° | 4 x 3-1/5 in. | 4 x 3-1/5 in. |
| Tubing Square at 45° | 2-3/5 x 2-3/5 in. | 2-3/5 x 2-3/5 in. |
| Tubing Square at 90° | 3-1/5 x 3-1/5 in. | 3-1/5 x 3-1/5 in. |
| Solid Square at 45° | 2-3/5 x 2-3/5 in. | 2-3/5 x 2-3/5 in. |
| Solid Square at 90° | 3-1/5 x 3-1/5 in. | 3-1/5 x 3-1/5 in. |
| Blade Speed | 52 RPM | 52 RPM |
| Motor | 2 HP | 2 HP |
| Voltage | 230v, 1-phase | 230v, 1-phase |
| Max. Vise Opening | 4.71" | 119.63 mm |
| Dimensions | 40 x 39 x 72 in. | 40 x 39 x 72 in. |
| Weight | 420 lbs. | 420 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 2 YEAR
