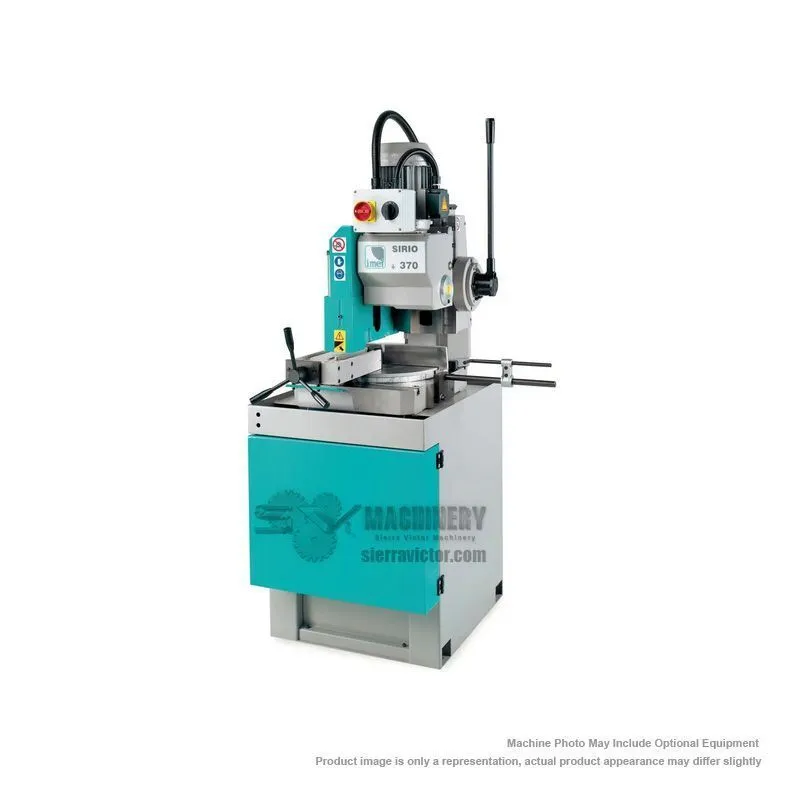

KMT SAW C370 Vertical Column Manual Cold Saw with Quick Clamping Air Vise has a Max Blade diameter of 14.5". The sawframe is quickly and accurately swiveled to any angle up to 45 degrees left or 60 degrees right, with a highly visible scale for optimum accurately returning to zero. Vertical column machines provide the construction that is the most stable of all cold saws. This means superior sawframe guidance and vibration-free sawing, and greater accuracy throughout the entire life of the machine.
| Construction Type | Vertical Column | Vertical Column |
| Max. Blade Diameter | 14.5" | 368.3 mm |
| Round at 0° | 4.5 in. | 4.5 in. |
| Square at 0° | 4 in. | 4 in. |
| Rectangle at 0° | 4 x 7 in. | 4 x 7 in. |
| Round at 45° right | 4 in. | 4 in. |
| Square at 45° right | 4 in. | 4 in. |
| Rectangle at 45° right | 4 x 5 in. | 4 x 5 in. |
| Round at 45° left | 4.5 in. | 4.5 in. |
| Square at 45° left | 4 in. | 4 in. |
| Rectangle at 45° left | 4 x 5 in. | 4 x 5 in. |
| Round at 60° right | 4.25 in. | 4.25 in. |
| Square at 60° right | 3.75 in. | 3.75 in. |
| Rectangle at 60° right | 3.5 x 3.5 in. | 3.5 x 3.5 in. |
| Spindle RPM | 13-89 | 13-89 |
| Spindle Diameter | 40 mm | 1.5748" |
| Motor | 4 HP | 4 HP |
| Voltage | 220v/3 or 460v/3 (specify) | 220v/3 or 460v/3 (specify) |
| Vise Style | Quick Clamping Air Vise | Quick Clamping Air Vise |
| Max. Vise Opening | 7.25" | 184.15 mm |
| Work height | 36.25" | 920.75 mm |
| Shipping Weight | 1,000 lb | 453.6 kg |
| Dimensions | 25 w x 31 deep in. | 25 w x 31 deep in. |
| Weight | 1000 lbs. | 1000 lbs. |
*Capacities shown are max envelope. Each individual cutting job must be considered with regards to type and shape of material, and quantity of pieces per day.
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
