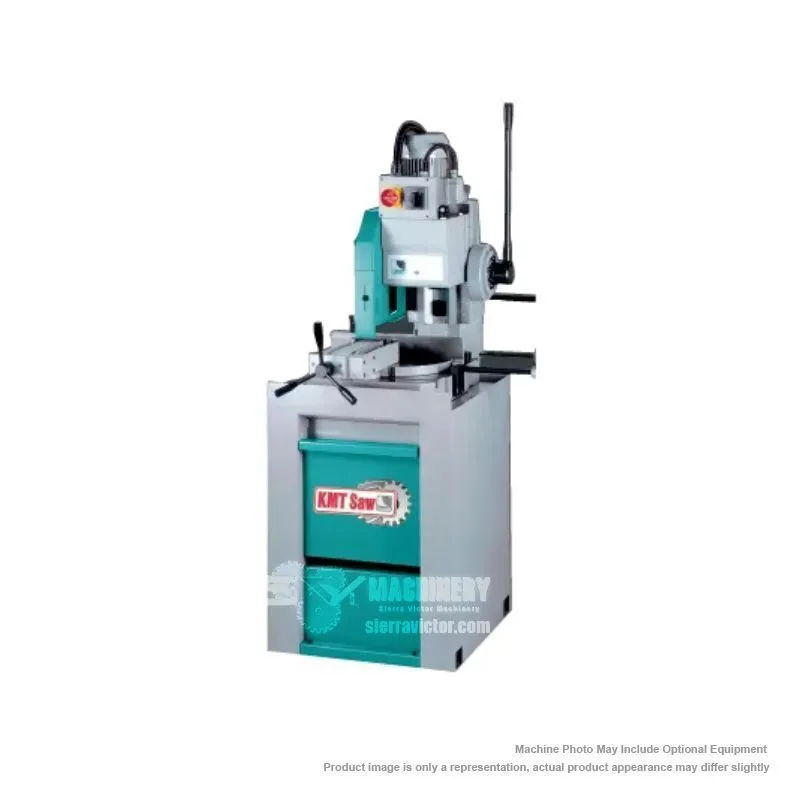

KMT SAW C316 Vertical Column Manual Cold Saw with Quick Clamping Air Vise has a Max Blade size of 12.5". The sawframe is quickly and accurately swiveled to any angle up to 45 degrees left or 60 degrees right, with a highly visible scale for optimum accurately returning to zero. Vertical column machines provide the construction that is the most stable of all cold saws. This means superior sawframe guidance and vibration-free sawing, and greater accuracy throughout the entire life of the machine.
| Construction Type | Hinge Type | Hinge Type |
| Max. Blade Diameter | 14" | 355.6 mm |
| Tubing Round at 90° | 4 in. | 4 in. |
| Tubing Rectangle at 90° | 3.75 x 5 in. | 3.75 x 5 in. |
| Tubing Square at 90° | 3.75 in. | 3.75 in. |
| Round at 45° right | 3.75 in. | 3.75 in. |
| Square at 45° right | 3.75 in. | 3.75 in. |
| Rectangle at 45° right | 3.75 x 3.75 in. | 3.75 x 3.75 in. |
| Round at 45° left | 3.75 in. | 3.75 in. |
| Square at 45° left | 3.75 in. | 3.75 in. |
| Rectangle at 45° left | 3.75 x 3.75 in. | 3.75 x 3.75 in. |
| Spindle RPM | 24-105 (220/1 optional); 30/60 | 24-105 (220/1 optional); 30/60 |
| Spindle Diameter | 32 mm | 1.2598" |
| Motor | 3.5 HP | 3.5 HP |
| Voltage | 220v/3, 460v/3 , 220v/1** (Please Specify) | 220v/3, 460v/3 , 220v/1** (Please Specify) |
| Vise Style | Quick Clamping Air Vise | Quick Clamping Air Vise |
| Max. Vise Opening | 6.25" | 158.75 mm |
| Work height | 39.75" | 1,009.6 mm |
| Shipping Weight | 650 lb | 294.8 kg |
| Dimensions | 23 w x 24 deep in. | 23 w x 24 deep in. |
| Weight | 650 lbs. | 650 lbs. |
* Capacities shown are max envelope. Each individual cutting job must be considered with regards to type and shape of material, and quantity of pieces per day.
** Additional charge - 220v/1-phase variable speed machine only
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Optional Items - Call for price:
AC230: Mobile Kit
AC200: 5' x 15" wide freestanding conveyor (additional 5' sections can bolt together)
AC250: 5' x 15" wide conveyor mounted to machine (additional 5' sections can bolt together)
AC102: 6' Worktable conveyor infeed/outfeed mounted to machine w/ coolant tray
AC103: Additional 6' connecting to AC102
