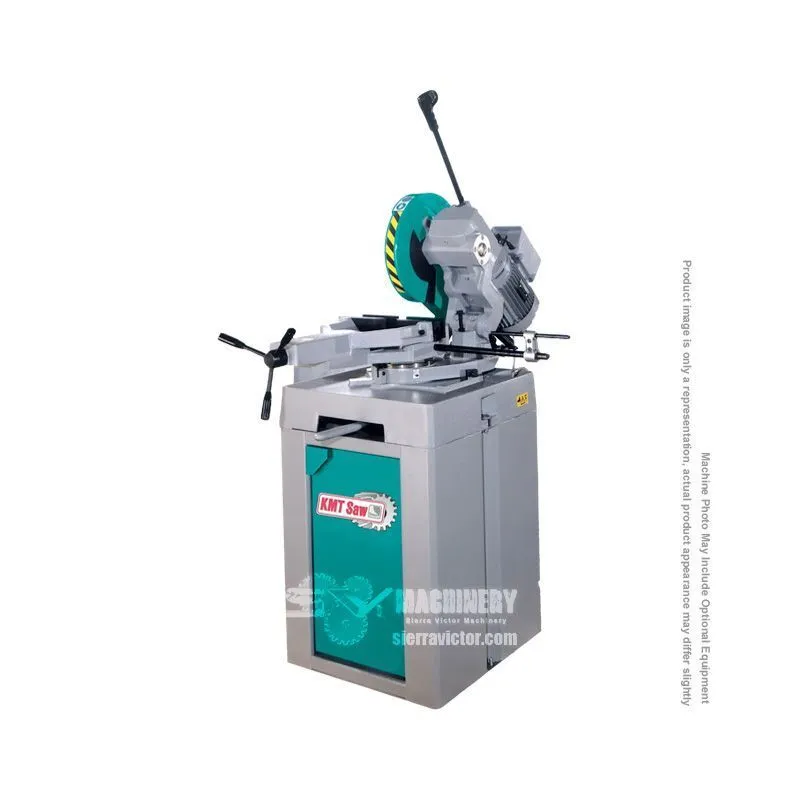

KMT SAW C315/350 Manual Cold Saw has a Max Blade size of 14". For tubes, pipes, light structurals. Hinge type machines are generally not considered production machines, but may be used in production under carefully considered applications. This 14" cold saw miters up to 45 degrees right and left vise also swivels for slotting capability.
| Construction Type | Hinge Type | Hinge Type |
| Max. Blade Diameter | 14" | 355.6 mm |
| Tubing Round at 90° | 4 in. | 4 in. |
| Tubing Rectangle at 90° | 3.75 x 5 in. | 3.75 x 5 in. |
| Tubing Square at 90° | 3.75 in. | 3.75 in. |
| Round at 45° right | 3.75 in. | 3.75 in. |
| Square at 45° right | 3.75 in. | 3.75 in. |
| Rectangle at 45° right | 3.75 x 3.75 in. | 3.75 x 3.75 in. |
| Round at 45° left | 3.75 in. | 3.75 in. |
| Square at 45° left | 3.75 in. | 3.75 in. |
| Rectangle at 45° left | 3.75 x 3.75 in. | 3.75 x 3.75 in. |
| Spindle RPM | 24-105 (220/1 optional); 30/60 | 24-105 (220/1 optional); 30/60 |
| Spindle Diameter | 32 mm | 1.2598" |
| Motor | 3.5 HP | 3.5 HP |
| Voltage | 220v/3, 460v/3, 220v/1** (specify) | 220v/3, 460v/3, 220v/1** (specify) |
| Max. Vise Opening | 6.25" | 158.75 mm |
| Work height | 39.75" | 1,009.6 mm |
| Shipping Weight | 650 lb | 294.8 kg |
| Dimensions | 23 w x 24 deep in. | 23 w x 24 deep in. |
| Weight | 650 lbs. | 650 lbs. |
* Capacities shown are max envelope. Each individual cutting job must be considered with regards to type and shape of material, and quantity of pieces per day.
** Additional Charge - 220v/1 variable speed machine only
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Optional Items - Call for price:
AC230: Mobile Kit
AC200: 5' x 15" wide freestanding conveyor (additional 5' sections can bolt together)
AC250: 5' x 15" wide conveyor mounted to machine (additional 5' sections can bolt together)
AC102: 6' Worktable conveyor infeed/outfeed mounted to machine w/ coolant tray
AC103: Additional 6' connecting to AC102
