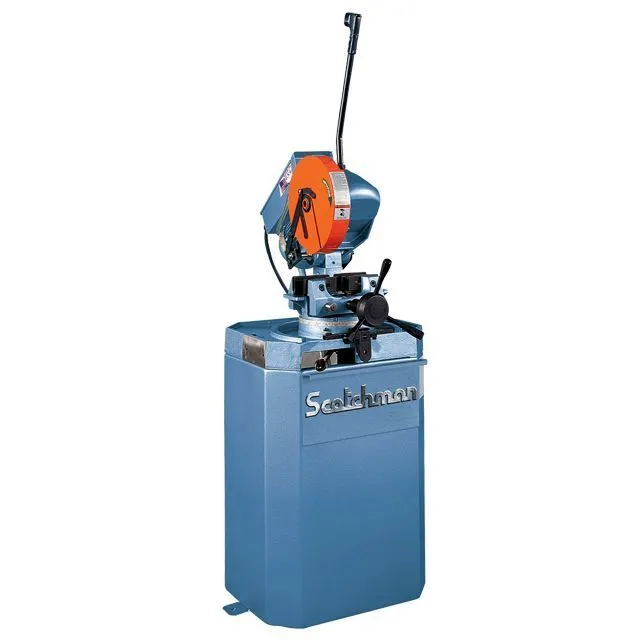

The Scotchman CPO 275 circular cold saw features a double self-centering vise to ensure safe, accurate, fast and efficient cuts. The CPO 275's 10-3/4" high-speed blade can Miter 90 degrees or 45 degrees to the left or right with a few quick and simple adjustments, and the built-in Miter Locking Device provides a quick, accurate measurement for every cut. Featuring two cutting speeds (LT 30/60 rpm or HT 60/120 rpm), the CPO 275 also comes with a seven-gallon coolant tank and one gallon of concentrated coolant.
| Material Type | Ferrous | Ferrous |
| Max. Blade Diameter | 10.75" | 273.05 mm |
| Tubing Round at 45° | 2 in. (51 x 51 mm) | 2 in. (51 x 51 mm) |
| Tubing Round at 90° | 3-3/8 in. (86 mm) | 3-3/8 in. (86 mm) |
| Solid Round at 45° | 1 in. (25 mm) | 1 in. (25 mm) |
| Solid Round at 90° | 1-1/2 in. (38 mm) | 1-1/2 in. (38 mm) |
| Tubing Rectangle at 45° | 2 x 2 in. (51 x 51 mm) | 2 x 2 in. (51 x 51 mm) |
| Tubing Rectangle at 90° | 3 x 2-3/8 in. (76 x 60 mm) | 3 x 2-3/8 in. (76 x 60 mm) |
| Tubing Square at 45° | 2 x 2 in. (51 x 51 mm) | 2 x 2 in. (51 x 51 mm) |
| Tubing Square at 90° | 3 x 3 in. (76 x 76 mm) | 3 x 3 in. (76 x 76 mm) |
| Solid Square at 45° | 1 x 1 in. (25 x 25 mm) | 1 x 1 in. (25 x 25 mm) |
| Solid Square at 90° | 1-1/2 x 1-1/2 in. (38 x 38 mm) | 1-1/2 x 1-1/2 in. (38 x 38 mm) |
| Arbor Bore | 1.25" | 31.75 mm |
| Voltage | 230v, 3-phase, 30/60 rpm ** (options available) | 230v, 3-phase, 30/60 rpm ** (options available) |
| Pin Spacing | 2/8/45 | 2/8/45 |
| Height not including handle | 53.25" | 1,352.5 mm |
| Height from floor to vise | 36.125" | 917.57 mm |
| Dimensions | W 21-7/8 x D 43-1/2 in. | W 21-7/8 x D 43-1/2 in. |
| Weight | 550 lbs. | 550 lbs. |
* Cutting Speeds: Must Specify when Ordering
LT (Low Turn): designed for solid mild steel, solid stainless steel & thick wall pipe
LT (Low Turn) 30 rpm / 60 rpm, Motor rate: 2.0 hp
HT (High Turn): designed for thin wall tube .060 wall thickness or thinner and non-ferrous material
HT (High Turn) 60 rpm / 120 rpm, Motor rate: 1.5 hp
SS (Single Speed) designed for 220v 1 ph applications
SS (Single Speed) 60 rpm, Motor rate: 2 hp
** Available Voltages:
076000: CPO 275 LT - 208V 3 PH (30/60 RPM)
076510: CPO 275 LT - 230V 3 PH (30/60 RPM)
076511: CPO 275 LT - 460V 3 PH (30/60 RPM)
076010: CPO 275 HT - 208V 3 PH (60/120 RPM)
076530: CPO 275 HT - 230V 3 PH (60/120 RPM)
076531: CPO 275 HT - 460V 3 PH (60/120 RPM)
076580: CPO 275 SS - 220V 1 PH (60 RPM)
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Parts
Optional Items - Call for price:
* RG Digital Quick Stop: Available in 8' and 12' lengths. This Digital Quick Stop is an entry level programmable sop. It is priced right, yet very durable. Setup is as easy as entering the desired cut length and pressing go!
* Special Clamping Fixture
* Miter Locking Device: STANDARD FEATURE (not available for 275 PK or 275 PKPD models)
* Square Tube Jaws
* 60" or 120" Material Stop Roller Conveyor Mounted with an Advanced Measuring Quick-Loc System: Designed for quick, easy and accurate length setting. Available left to right or right to left material feed.
* 10' & 20' Material Supply Track
* BLADES & SHARPENING:
Cold Saw Blades
Scotchman offers a complete selection of saw blades in stock for immediate delivery.
Cold Saw Blade Sharpening
Scotchman offers a fast, high-quality blade sharpening service and will grind blades with special tooth number.
