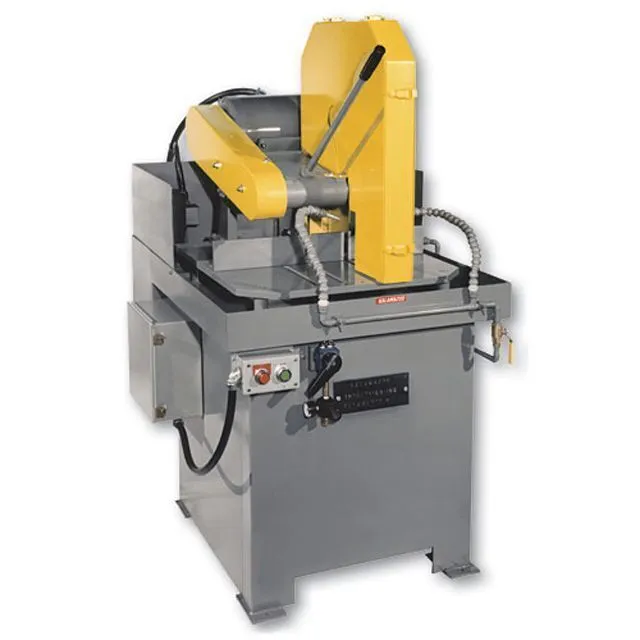

NEW KALAMAZOO INDUSTRIES K20SW
Overview
Description
The Kalamazoo K20SW-20 20 inch wet abrasive cutoff saw is a powerful and versatile tool for cutting various materials, including steel, stainless steel, and cast iron. It features a 20-inch abrasive wheel that can make fast cuts with minimal heat distortion. 20 HP 3PH motor wired for 220V and or 440V.
Specifications
| Operation | Manual | Manual |
|---|---|---|
| Capacity - Round Solid | 4" | 101.6 mm |
| Capacity - Shapes | 6" | 152.4 mm |
| Abrasive Wheel Size | 20" | 508 mm |
| Power | 20 hp | 14.9 kW |
| Phase | 3-Phase | 3-Phase |
| Voltage | 220V or 440V (specify) | 220V or 440V (specify) |
| Spindle Arbor | 1 in. | 1 in. |
| Spindle Speed | 1,950 RPM | 1,950 RPM |
| Dimensions | L 53 x W 73 x H 74 in. | L 53 x W 73 x H 74 in. |
| Weight | 1,475 lbs | 1,475 lbs |
*TEFC motor
*Shapes are in mild steel
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR - Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
Equipped With
OPTIONAL ITEMS - CALL FOR PRICE:
PH-20: Power down feed
AV-18: Air vise - 10"-18" straight cut saws. Requires 0-100 PSI air
OSC-26: Oscillation
KC5: Gravity Roller Conveyor - 1.9" diameter rollers, 6" centers, 3000# capacity for each 5' section
