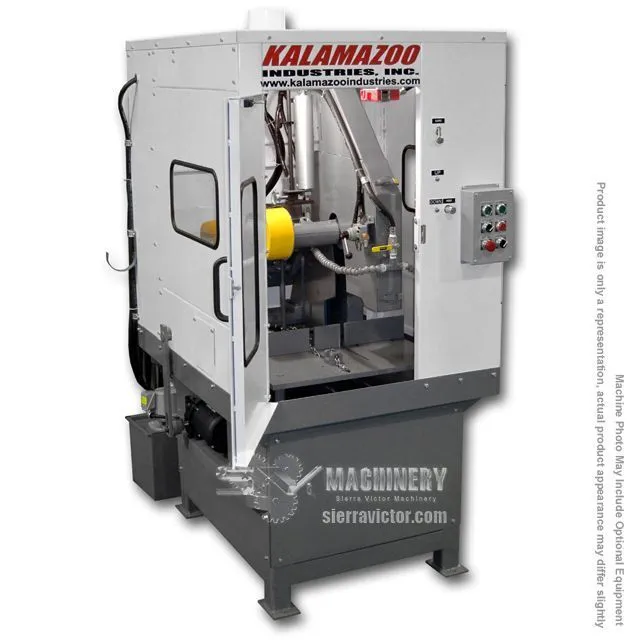

The Kalamazoo K20E-20 20 inch enclosed saw will cut metal samples. The machine features a powerful 20HP motor, a fully enclosed cabinet, power down feed system, oscillation, and a flood coolant system. Material Capacity is 4 in. solid, 6 in. shapes.
| Material Capacity | 4 in. solid, 6 in. shapes | 4 in. solid, 6 in. shapes |
| Abrasive Wheel Size | 20" | 508 mm |
| Motor | 20 HP | 20 HP |
| Power | 3ph 230/460v | 3ph 230/460v |
| Spindle Arbor | 1 in. | 1 in. |
| Spindle Speed | 1,950 RPM | 1,950 RPM |
| Dimensions | D 50 x W 54 x H 89 in. | D 50 x W 54 x H 89 in. |
| Weight | 1,900 lbs. | 1,900 lbs. |
*1.25 arbor also available
**15HP, 3ph also Available
**Specify voltage at the time of order
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Optional Items - Call for price:
710-052: door safety interlock system (keeps the operator out of the machine while in operation. Once the saw blade stops rotating, the operator can open the saw door.
TS-20: t-slot table
AV-20: air-operated jaw vise
