NEW KALAMAZOO INDUSTRIES K12-14W
Overview
Description

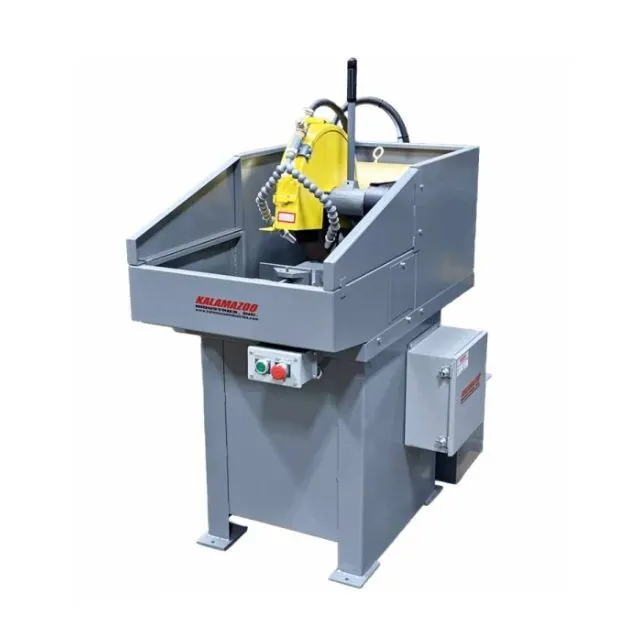

Cut metal with ease and smoothness using the Kalamazoo K12-14W-1 14 inch wet saw. Powerful 5HP motor, flood coolant system, and durable construction make it ideal for demanding metalworking tasks. Material capacities: 2.5" solids, 3" pipe (base on mild steel).
Specifications
| Capacity - Round Solid | 2.5" | 63.5 mm |
|---|---|---|
| Capacity - Pipe | 3" | 76.2 mm |
| Abrasive Wheel Size | 14" | 355.6 mm |
| Power | 5 hp | 3.7 kW |
| Phase | 1-phase | 1-phase |
| Voltage | 220V | 220V |
| Spindle Arbor | 1 | 1 |
| Spindle Speed | 2200 RPM | 2200 RPM |
| Coolant Tank Size | 10 gal | 37.9 L |
| Spindle Arbor Thread Type | Left-handed | Left-handed |
| Dimensions | L 60 x W 38 x H 67 in. | L 60 x W 38 x H 67 in. |
| Weight | 775 lbs. | 775 lbs. |
*Abrasive wheel size: 12" and or 14" (use abrasive wheels only)
**Spindle arbor size: 1" (32mm and or 1.25" also available)
*Pipe is mild steel
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR - Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
Equipped With
OPTIONAL ITEMS - CALL FOR PRICE:
PH-14 air/oil power down feed system
AV-14 air-operated air vise
TM80128WS machine coolant
