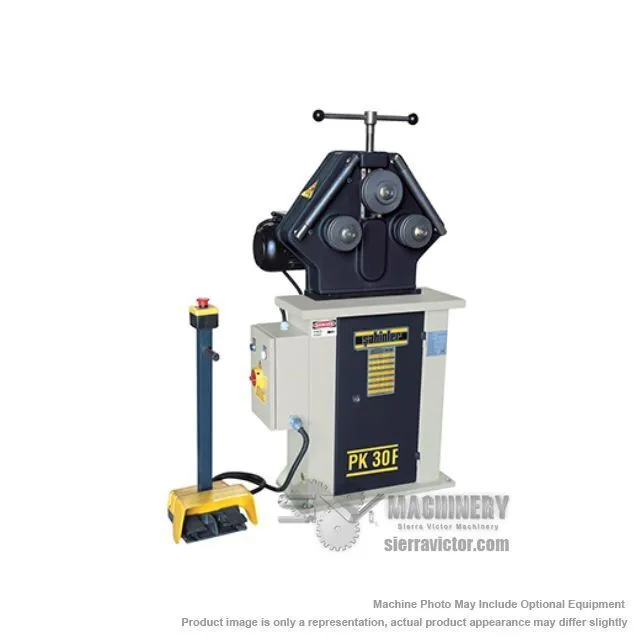

The COLE-TUVE PK-30F-Sph Variable Speed, 1-Ph Pyramid Angle, Pipe and Shape Bending Roll has two powered rolls and a 1-1/2 capacity. Standard Rolls Handle Many Shapes. Horizontal and Vertical Working Positions.
| Angle Roll Type | Manual | Manual |
| Capacities | 1-1/2 x 1-1/2 x 3/16 in. | 1-1/2 x 1-1/2 x 3/16 in. |
| Shaft Ø | 1.18" | 29.972 mm |
| Motor Power | 1 & 1-1/4 (Please Specify) | 1 & 1-1/4 (Please Specify) |
| Power | Variable Speed, Single Phase | Variable Speed, Single Phase |
| Driven Rolls | 2 | 2 |
| Rolling Speed, FPM | 6-1/2 and 13 | 6-1/2 and 13 |
| Roll Adjustment | Manual | Manual |
| Pipe Capacity | 1.5" Sch. 40", ø24" | 1.5" Sch. 40", ø24" |
| Upper Roll Dia. | 5.83" | 148.08 mm |
| Lower Roll Dia. | 4.65" | 118.11 mm |
| Style | Pyramid | Pyramid |
| Working Plane | Horizontal / Vertical | Horizontal / Vertical |
| Dimensions | 24 x 32 x 57 in. | 24 x 32 x 57 in. |
| Weight | 570 lbs | 570 lbs |
*The shapes marked (SP) require optional special rolls. The other shapes can normally be rolled with the stardard rolls supplied with the machine. For production runs of some of those shapes, optional special rolls may be desirable. Rolling angle leg-in requires optional leg-in guide rolls and may require special rolls.
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Optional Items - Call for price:
*Pipe/Tube/Shape Bending Rolls
*Electronic Digital Readout (LED)
*Leg-In Guide Rolls
