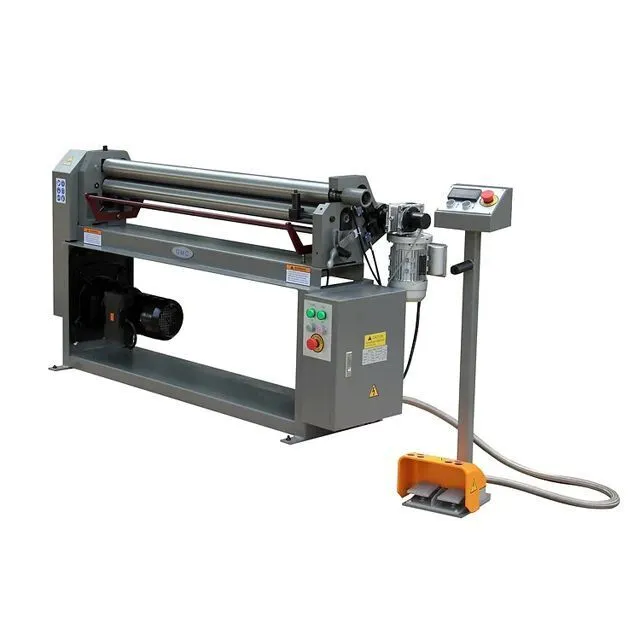

NEW GMC MACHINE TOOLS PSR-5014E-1PH

Florida, United States
Asking Price
USD $8,950.00
1 available
3,961Listings|13Followers
Overview
Plate Bending Rolls including Pinch

GMC PSR-5014E-1PH one phase Powered Slip Roll has a mild steel capacity of 50 inches x 14 gauge. Bending roll is powered up/down with push button and LED display for repeat jobs and can make cone parts. All three rolls are made of high grade alloy steel, hardened up to 50 HRC

Specs
Length of Rolls
4'
1.2 m
Length of Rolls
50"
1,270 mm
Roll Diameter
3.5"
88.9 mm
Rolling Capacity - Mild Steel
14 gauge
14 gauge
Rolling Capacity - Stainless Steel
18 gauge
18 gauge
Rolling Capacity - Soft aluminum
10 gauge
10 gauge
Min. Thickness
26 gauge
26 gauge
Min. Roll Bending Diameter Capacity
3.5"
88.9 mm
Wire Grooves
5/16 in., 3/8 in., 1/2 in.
5/16 in., 3/8 in., 1/2 in.
Rolls Opening
0.25"
6.35 mm
Roll Speed
201 in/min.
5,105.4 mm/min.
Motor Power
2 hp
1.5 kW
Phase
1-Phase
1-Phase
Voltage
220V
220V
Shipping Weight
985 lb
446.8 kg
Dimensions
68 x 32 x 49 in.
68 x 32 x 49 in.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
