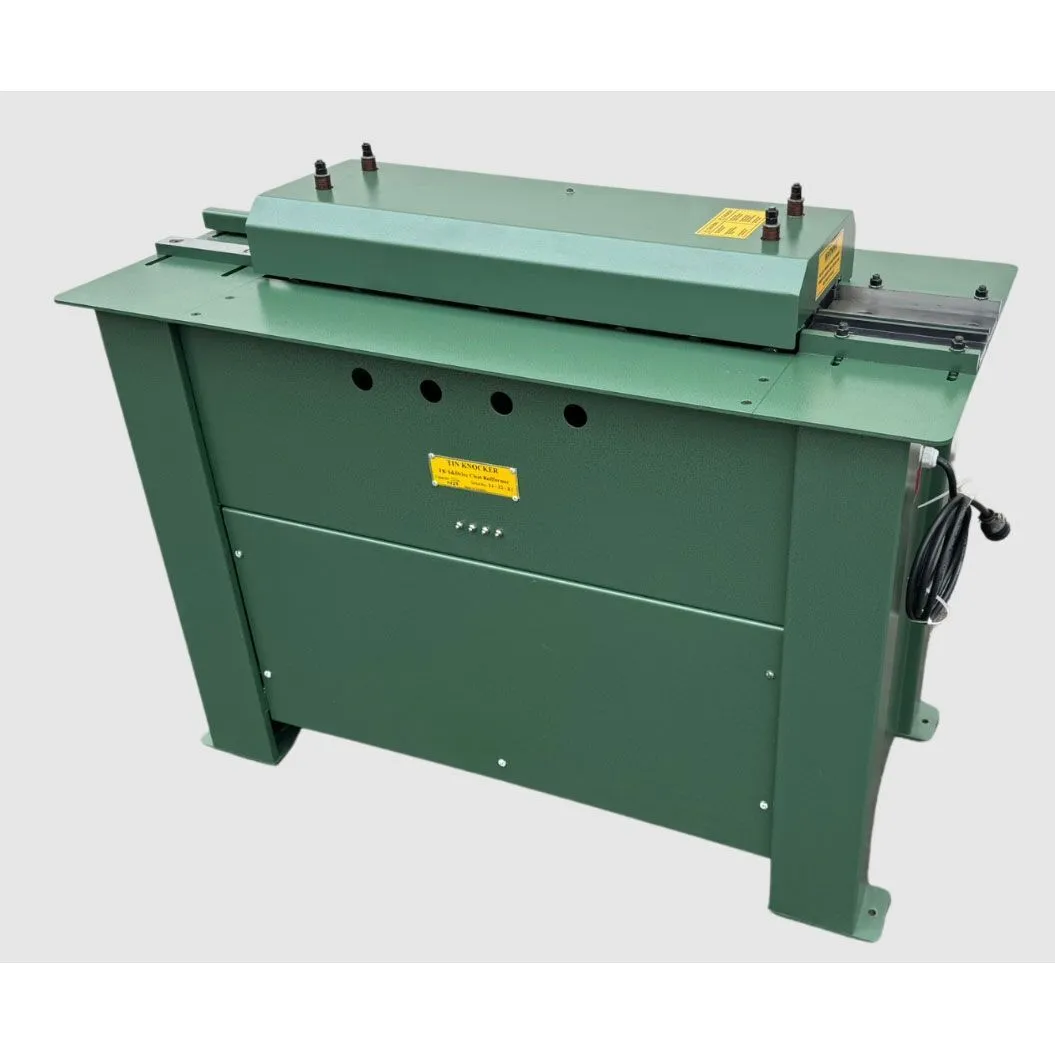

The TIN KNOCKER TK S & Drive Rollformer is the perfect machine to make metal into "S" and Drive Cleats.The capacity in galvanized mild steel is 22-28 Gauge.Uses approx. 3-5/8" of material for S-Cleats, 2-1/8" for Drive Cleats.
| Capacity - Galvanized Mild Steel | 22-28 Ga | 22-28 Ga |
| Capacity - Width of S-Cleat | 1-1/16 in. | 1-1/16 in. |
| Capacity - Width of Drive Cleat | 1-1/8 in. | 1-1/8 in. |
| Power | 1.5 hp | 1.1 kW |
| Electical | 1-Phase, 110v | 1-Phase, 110v |
| Feeding Speed | 90 FPM | 90 FPM |
| Shipping Weight | 565 lb | 256.3 kg |
| Dimensions | Approx. 52 x 29 x 46 in. | Approx. 52 x 29 x 46 in. |
* Free Shipping to Commercial Address with Forklift / Loading Dock or Terminal Pickup
* Residential / Liftgate Charge: $150
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
