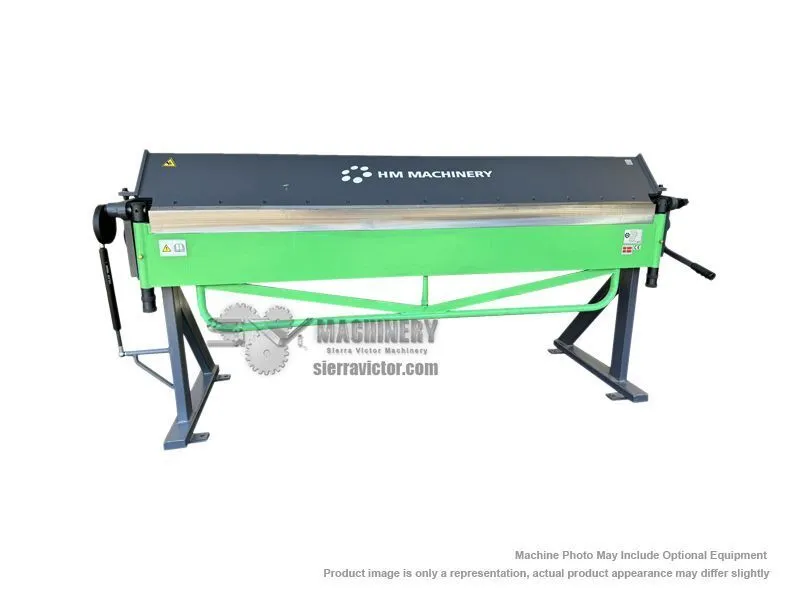

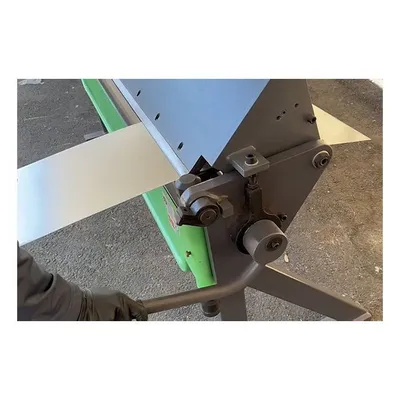

The HM Machinery 2000L 6ft x 20 ga Straight Brake is a durable, large-scale manual brake designed to produce consistent high quality bends up to 79" wide in high-production environments. Precision ground tooling on the single piece angled nose bar, combined with cross-driven clamping and a repeat angle stop, enable repeatable and accurate bends. Cross-driven clamping allows easy consistent material positioning.
| Capacity (ga) Mild Steel | 20 gauge | 20 gauge |
| Bending Length (inches) | 79" | 2,006.6 mm |
| Bending Angle | 135 Degrees | 135 Degrees |
| Maximum Opening | 1.5" | 38.1 mm |
| Shipping Dimensions LxWxH | 92 x 29 x 44 in. | 92 x 29 x 44 in. |
| Shipping Weight | 1,050 lb | 476.3 kg |
| Weight | 1050 lbs | 1050 lbs |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Limited
Optional Items:
Back gauge, radius blade R=2,5 mm and roller shear - Call for price
