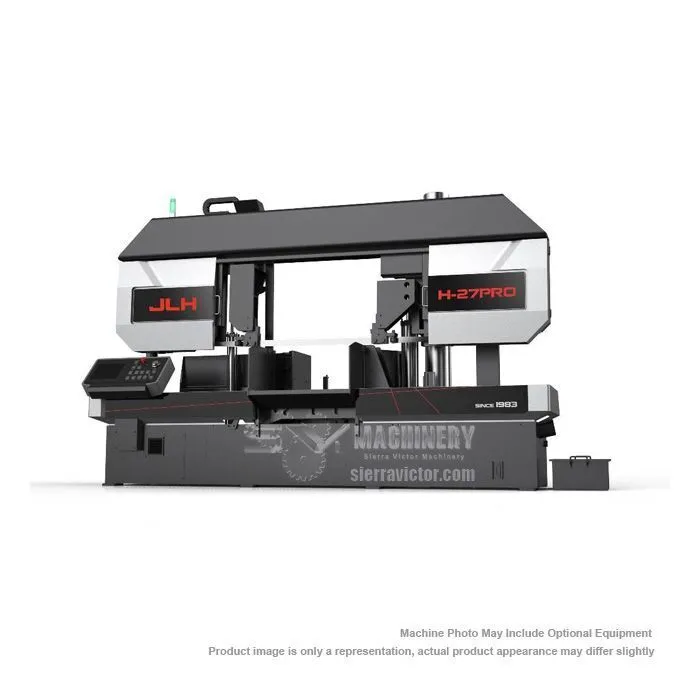

JLH H-27PRO is a 27 inch capacity Column Type Fully Automatic Bandsaw.15.7 HP motor drives an extremely heavy-duty direct drive gearbox.PLC controlled color type touch screen display. The JLH Saws control allows for programming up to 100 jobs, consisting of a length and part count.
| Capacity Round | 27.6 in. | 27.6 in. |
| Capacity Square | 31.5 x 27.6 in. | 31.5 x 27.6 in. |
| Blade Motor | 15.7 HP | 15.7 HP |
| Blade Speed | 65.6-262.5 SFPM | 65.6-262.5 SFPM |
| Saw Blade Size | 318.9 x 2.1 x 0.063 in. | 318.9 x 2.1 x 0.063 in. |
| Saw Blade Tension | Hydraulic Controlled | Hydraulic Controlled |
| Power | 220v, 3-Phase 60Hz | 220v, 3-Phase 60Hz |
| Coolant Motor | 0.2 HP | 0.2 HP |
| Coolant - Reservoir Size | 31.7 gal | 120 L |
| Hydraulic Motor | 2.0 HP | 2.0 HP |
| Hydraulic Oil | 18.5 gal | 70 L |
| Drive and Idle Wheel Size | φ29.1 in. | φ29.1 in. |
| Single Speed Stroke | 19.7" | 500.38 mm |
| Dimensions | 155 x 88 x 100 in. (LxWxH) | 155 x 88 x 100 in. (LxWxH) |
| Weight | ≈ 13,228 lbs. | ≈ 13,228 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
3 YEAR WARRANTY - Mechanical Parts
2 YEAR WARRANTY - Electrical Parts
1 YEAR WARRANTY - Labor
Optional Items - Call for price:
* Variable Vise Pressure Control System
* Powered Chip Auger
* Hydraulic Top Clamp (removable, short stroke)
* 6’6” (2M) Idle Roller Table 6.5’ Long, with Vertical Alignment Rollers
* 9’10” (3M) Idle Roller Table 6.5’ Long, with Vertical Alignment Rollers
* Powered Roller Tables
* Transformer for 480V, 3 Phase
