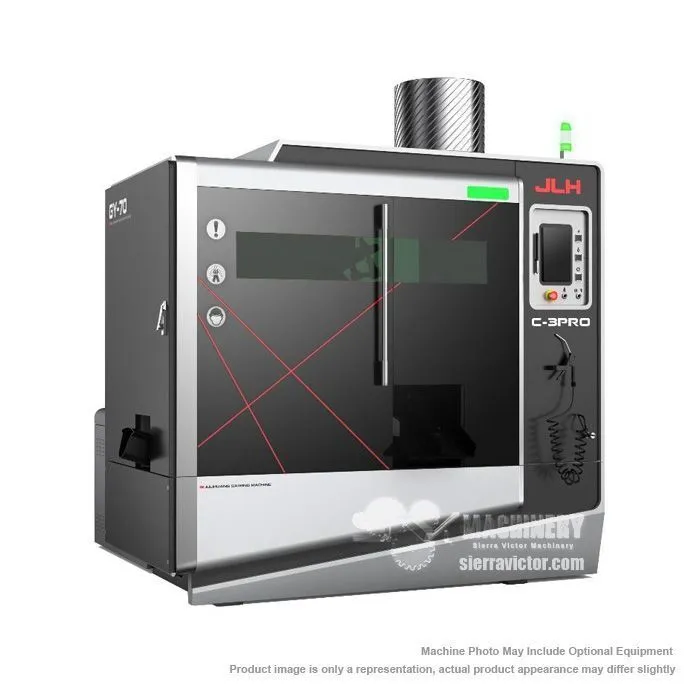

JLH 12 inch C-3PRO is a Fully Automatic Circular Bandsaw. Controller provides latest in PLC based control technology. 45 degree Slant-bed design.
| Max Blade Diameter | 315 mm | 12.402" |
| Maximum Cutting Capacity - Round | 15-80mm (.590 - 3.149 in.) | 15-80mm (.590 - 3.149 in.) |
| Maximum Cutting Capacity - Square | 15-60mm (.590 - 2.363 in.) | 15-60mm (.590 - 2.363 in.) |
| Motor | 14.9 HP | 14.9 HP |
| Hydraulic Motor | 2.9 HP | 2.9 HP |
| Coolant Motor | 3.9 HP | 3.9 HP |
| Power | 220v, 3-phase, 60Hz | 220v, 3-phase, 60Hz |
| Blade Speed | 30~160 RPM | 30~160 RPM |
| Single Feed Stroke | 800 mm | 31.496" |
| Hydraulic Oil Tank Capacity | 15.8 gal | 59.8 L |
| Cutting Liquid Oil Tank Capacity | 0.5 gal | 1.9 L |
| Dimensions | 100 x 87 x 87 in. | 100 x 87 x 87 in. |
| Weight | 9,259 lbs. without loader | 9,259 lbs. without loader |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
3 YEAR WARRANTY - Mechanical Parts
2 YEAR WARRANTY - Electrical Parts
1 YEAR WARRANTY - Labor
