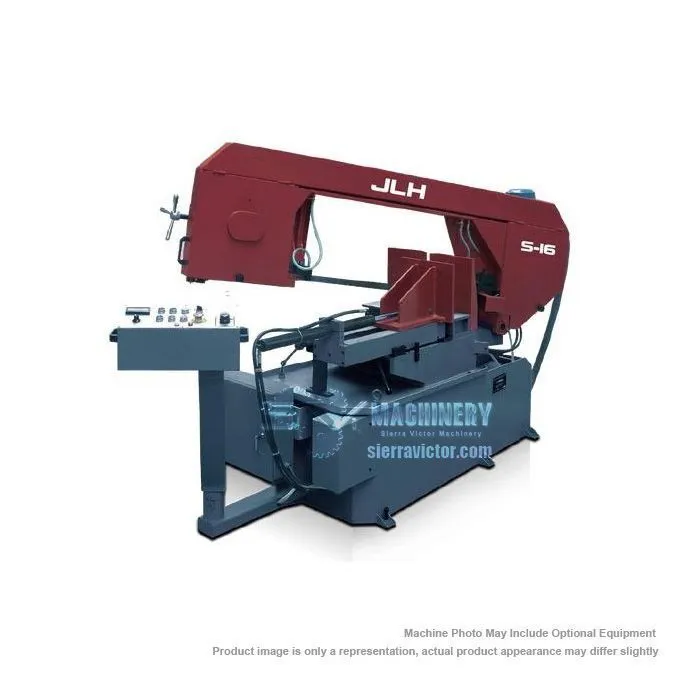

JLH 16 inch S-16DM is a Semi-Automatic Mitering hinge type bandsaw.Has Coolant tank with electric pump for blade lubrication and cooling.It is double miter and has a manual vise.
| Round at 0° | 16.5" | 419.1 mm |
| Square at 0° | 16.5 x 24.0 in. | 16.5 x 24.0 in. |
| Round at 45° | 15.7" | 398.78 mm |
| Square at 45° | 15.7 x 15.7 in. | 15.7 x 15.7 in. |
| Round at 60° | 11" | 279.4 mm |
| Square at 60° | 11.0 x 11.0 in. | 11.0 x 11.0 in. |
| Blade Size | 204.7 x 1-1/4 x 0.042 in. | 204.7 x 1-1/4 x 0.042 in. |
| Blade Tension | Manually Controlled | Manually Controlled |
| Blade Speed | 65~295.3 sfpm | 65~295.3 sfpm |
| Blade Motor | 4.1 HP | 4.1 HP |
| Power | 220v, 3-Phase 60Hz | 220v, 3-Phase 60Hz |
| Hydraulic Motor | 1.0 HP | 1.0 HP |
| Coolant Motor | 0.18 HP | 0.18 HP |
| Dimensions | 126 x 130 x 61 in. | 126 x 130 x 61 in. |
| Weight | 2,403 lbs. | 2,403 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
3 YEAR WARRANTY - Mechanical Parts
2 YEAR WARRANTY - Electrical Parts
1 YEAR WARRANTY - Labor
Optional Items - Call for price:
* 6’6” (2M) Idle Roller Table
* 9’10” (3M) Idle Roller Table
* Powered Roller Tables
* Transformer for 480V, 3 Phase
