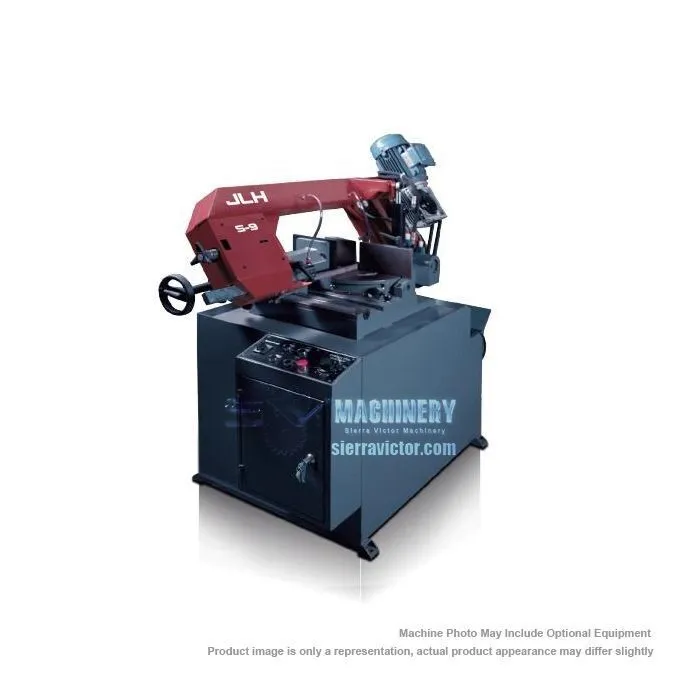

NEW JLH S-9DM

Florida, United States
3,831Listings|9Followers
Overview
Horizontal Band Saws

JLH 9 inch S-9DM is a Semi-Automatic Mitering hinge type bandsaw.Has Coolant tank with electric pump for blade lubrication and cooling.It is double miter and has a manual vise.

Specs
Round at 0°
9.1"
231.14 mm
Square at 0°
2.2 x 9.1 in.
2.2 x 9.1 in.
Round at 45°
8.5"
215.9 mm
Square at 45°
8.3 x 8.3 in.
8.3 x 8.3 in.
Round at 60°
5.5"
139.7 mm
Square at 60°
5.5 x 3.9 in.
5.5 x 3.9 in.
Blade Size
114 x 1 x 0.042 in.
114 x 1 x 0.042 in.
Blade Tension
Manually Controlled
Manually Controlled
Blade Speed
118/230 sfpm
118/230 sfpm
Blade Motor
2.44 HP / 1.8 HP
2.44 HP / 1.8 HP
Power
220v, 3-Phase 60Hz
220v, 3-Phase 60Hz
Hydraulic Motor
.57 HP
.57 HP
Coolant Motor
0.18 HP
0.18 HP
Dimensions
63 x 31 x 59 in.
63 x 31 x 59 in.
Weight
1,300 lbs.
1,300 lbs.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
3 YEAR WARRANTY - Mechanical Parts
2 YEAR WARRANTY - Electrical Parts
1 YEAR WARRANTY - Labor

Equipped With

Optional Items - Call for price:
* 6’6” (2M) Idle Roller Table 6.5’ Long, with Vertical Alignment Rollers
* 9’10” (3M) Idle Roller Table 6.5’ Long, with Vertical Alignment Rollers
* Powered Roller Tables
* Transformer for 480V, 3 Phase
