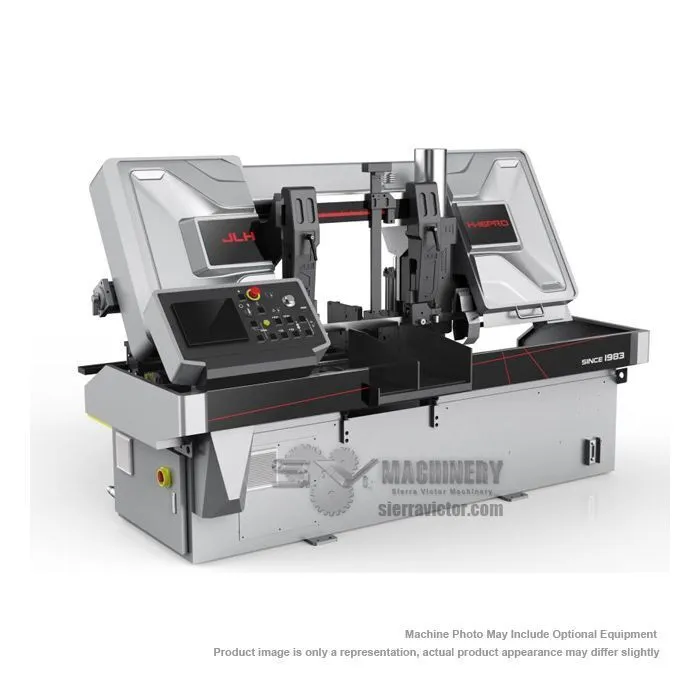

JLH Saws H-16PRO is a rigid column-type production bandsaw machine.10.1 HP motor drives an extremely heavy-duty direct drive gearbox.PLC controlled color type touch screen display. The JLH Saws control allows for programming up to 100 jobs, consisting of a length and part count.
| Capacity Round | 16.1 in. | 16.1 in. |
| Capacity Square | 16.1 x 16.1 in. | 16.1 x 16.1 in. |
| Capacity Rectangular | 16.1 x 8.7 in. | 16.1 x 8.7 in. |
| Blade Motor | 10.1 HP | 10.1 HP |
| Blade Speed | 32.8-328 SFPM | 32.8-328 SFPM |
| Saw Blade Size | 202.8 x 1.6 x 0.05 in. (5150 x 41 x 1.3mm) | 202.8 x 1.6 x 0.05 in. (5150 x 41 x 1.3mm) |
| Saw Blade Tension | Hydraulic controlled | Hydraulic controlled |
| Power | 220v, 3-Phase 60Hz | 220v, 3-Phase 60Hz |
| Coolant Motor | 0.18 HP | 0.18 HP |
| Coolant - Reservoir Size | 31.7 gal | 120 L |
| Hydraulic Motor | 2.0 HP | 2.0 HP |
| Hydraulic Oil | 18.5 gal | 70 L |
| Drive and Idle Wheel Size | φ22.0 in. | φ22.0 in. |
| Bed Height | 26.24" | 666.5 mm |
| Single Speed Stroke | 19.7" | 500.38 mm |
| Dimensions | 89 x 104 x 65 in. (LxWxH) | 89 x 104 x 65 in. (LxWxH) |
| Weight | 5,511 lbs. | 5,511 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
3 YEAR WARRANTY - Mechanical Parts
2 YEAR WARRANTY - Electrical Parts
1 YEAR WARRANTY - Labor
Optional Items - Call for price:
* Variable Vise Pressure Control System
* Powered Chip Auger
* Hydraulic Top Clamp (removable, short stroke)
* 6’6” (2M) Idle Roller Table 6.5’ Long, with Vertical Alignment Rollers
* 9’10” (3M) Idle Roller Table 6.5’ Long, with Vertical Alignment Rollers
* Powered Roller Tables
* Transformer for 480V, 3 Phase
