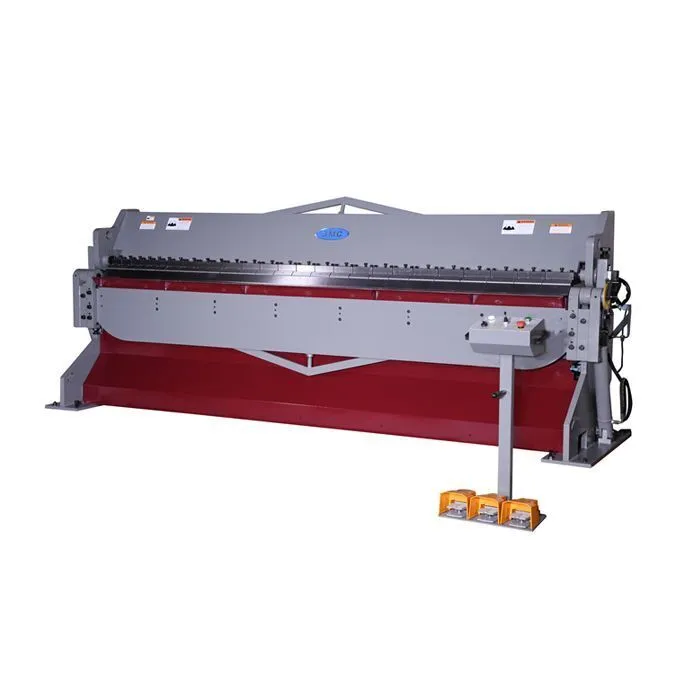

GMC HSB-1014 Hydraulic Straight Apron Brake has a 10 foot max bending length and 14 gauge mild steel capacity. This machine is made in Taiwan. 26 inch manual back gauge with one side handwheel operation. Heavy welded all steel construction for maximum rigidity.
| Capacity (ga) Mild Steel | 14 gauge | 14 gauge |
| Capacity (ga) Stainless | 16 gauge | 16 gauge |
| Capacity (ga) Aluminum | 10 gauge | 10 gauge |
| Hemming Max Thickness | 28 gauge | 28 gauge |
| Bending Length | 10' | 3,048 mm |
| Straight Finger Length | 10 ft x 1 in. | 10 ft x 1 in. |

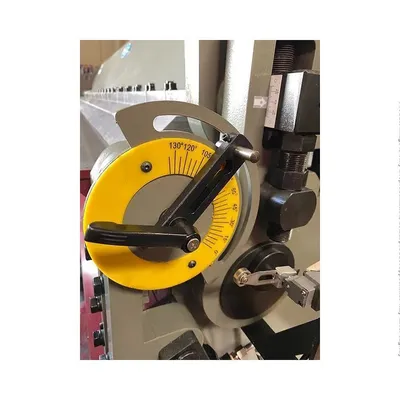

| Bending Degree | 135° | 135° |
| Max. box and pan depth with Optional sort of fingers | 4" | 101.6 mm |
| Beam Opening | 3" | 76.2 mm |
| Manual Back gauge | 26" | 660.4 mm |
| Oil Tank | 17 gal | 64.4 L |
| Hydraulic Oil | Shell #68 or equivalent | Shell #68 or equivalent |
| Main Motor | 5 HP, 3 Phase | 5 HP, 3 Phase |
| Prewired | 220VAC 20A | 220VAC 20A |
| Optional | 440VAC 10A | 440VAC 10A |
| Machine Weight | 6,850 lb | 3,107.1 kg |
| Shipping Weight | 6,950 lb | 3,152.5 kg |
| Machine Dimensions LWH | 142 x 46 x 66 in. | 142 x 46 x 66 in. |
| Shipping Dimensions LWH | 153 x 41 x 67 in. | 153 x 41 x 67 in. |
| Dimensions | 142 x 46 x 66 in. | 142 x 46 x 66 in. |
| Weight | 6950 | 6950 |
Mild Steel (hot roll) 60K PSI
Stainless Steel tensile 85K PSI
Soft Aluminum tensile 28K PSI
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Optional Items:
One set of assorted fingers 3"/6pcs, 4"/4pcs, 5"/10pcs, 6"/6pcs extra - call for pricing
Safety fence for enclosure of the front side of the machine………... call for pricing
Safety light curtain …………………………………………………. call for pricing
3" replacement finger ……………………………………………… call for pricing
4" replacement finger ……………………………………………… call for pricing
5" or 6" replacement finger ……………………………………….. call for pricing
