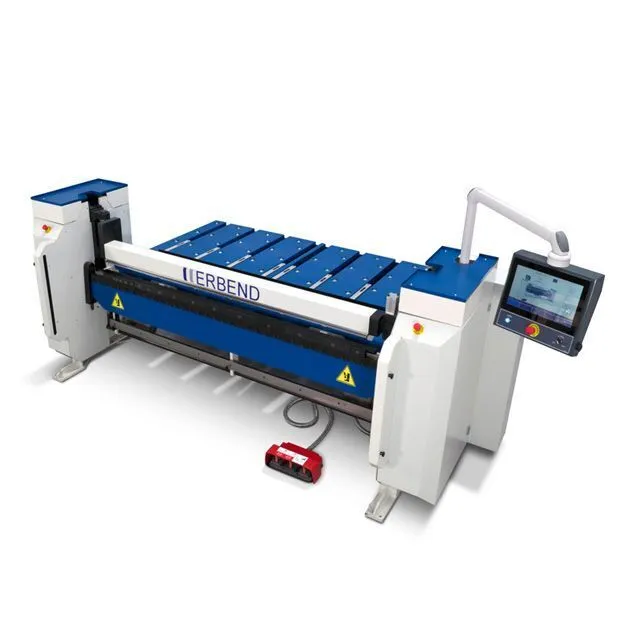

ERBEND MFH 2115 CNC Motorized Folder has a max sheet length of 2100mm and mild steel capacity of 1,5mm. Specifically designed for HVAC industry for air duct and chimney production. 1000 MM Servo backgauge system with special high gauging bar. ERFOLD Basic CNC line by line controller software.
| Max Sheet Length | 82.6" | 2,098 mm |
| Max Sheet Length | 6' | 1.8 m |
| Mild Sheet | 0.059" | 1.4986 mm |
| Stainless | 0.031" | 0.7874 mm |
| Aluminum | 0.078" | 1.9812 mm |

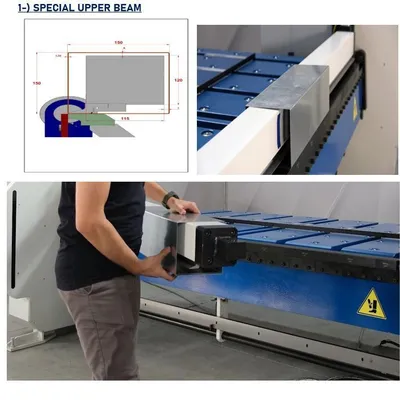

| Upper Beam (Z axis) - Beam opening (with sharpnose tool) | 4.75 in. | 4.75 in. |
| Upper Beam (Z axis) - Motor Power (AC) | 0,75 kW | 0,75 kW |
| Upper Beam (Z axis) - Transmission system | Eccentric | Eccentric |
| Upper Beam (Z axis) - Clamping speed | 3.54 in./sec | 3.54 in./sec |
| Folding Beam (Y axis) - Transmission system | Chain gear | Chain gear |
| Folding Beam (Y axis) - Folding angle | 0 - 150° | 0 - 150° |
| Folding Beam (Y axis) - Motor Power (AC) | 1,1 kW | 1,1 kW |
| Folding Beam (Y axis) - Max Bending Speed | 100°/sec | 100°/sec |
| Folding Beam Height Adjustment (A1-A2 axis) - Adjustment gap | 0 / -0.78 in. | 0 / -0.78 in. |
| Folding Beam Height Adjustment (A1-A2 axis) - Control | Manual | Manual |

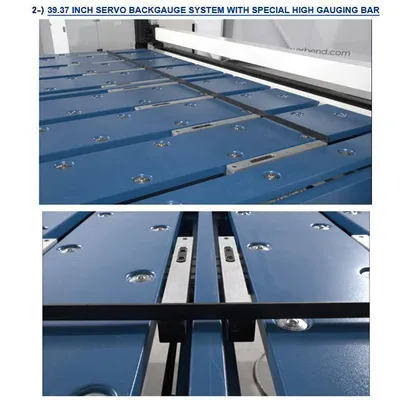

| Back gauge system (X axis) - Max Speed | 9.84 in./sec | 9.84 in./sec |
| Back gauge system (X axis) - Motor Power (Servo) | 400 W | 400 W |
| Back gauge system (X axis) - Positioning / repeatability accuracy | +/- 0,1 mm | +/- 0,1 mm |
| Weight | 5,070 lbs. | 5,070 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR - Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
OPTIONAL ITEMS - CALL FOR PRICE:
DIFFERENT NOSE RADIUS SHARPNOSE TOOL
Possible nose radius: R1,5 – R2 – R3 – R5 – R10
2.36 INCH HIGH SEGMENTED GOAT FOOT TOOL SET 82.67 INCH LONG

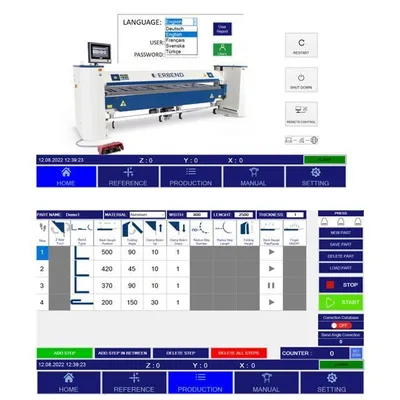

NEW ERFOLD BASIC 2D CNC GRAPHICAL CONTROL SOFTWARE
Windows based software specifically designed for folders and %100 owned by Erbend
15.6" capacitive LED touchscreen controller on swivel arm
LBL Editor: You can adjust the bending steps line by line by entering the numeric values of axis targets or measures.
2D part editor: you can create a new bending programme by drawing in graphic mode and visualize in 2D graphical screen
You can determine and change the bending sequence on the created part while you are making graphical collision control
Capability of choosing material type,thickness,springback,bending correction and creating data base for every type of material type, thickness and length
Authorization with password
128 GB hard disk space which allows you to save unlimited data
Detailed alarm,tooling and parameters page
