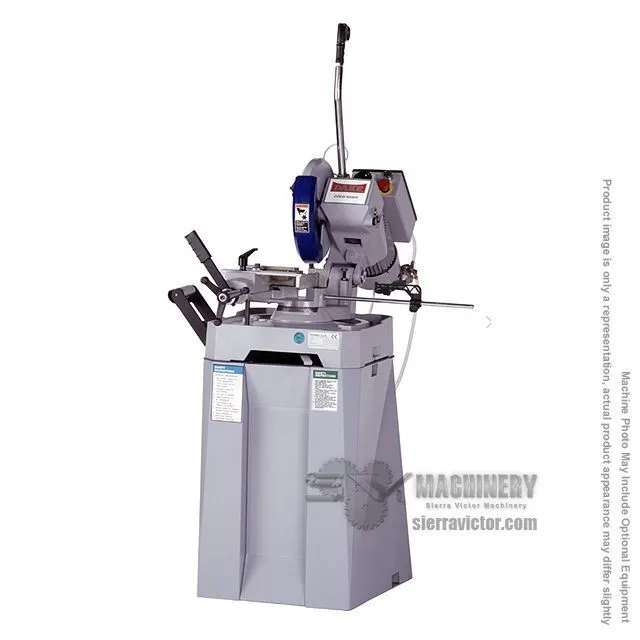

The DAKE Supercut 315 Manual cold saw has a head that will rotate 45º left and right for mitering. Heavy-duty low production saw, comes with one standard HSS blade. This cold cut miter saw model has 24V at controls, an e-stop, low voltage protection, and thermal overload protection. Available in 120V, 220V and 440V operation.
| Material Type | Ferrous/Non-ferrous/Plastics | Ferrous/Non-ferrous/Plastics |
| Max. Blade Diameter | 12.5" | 317.5 mm |
| Tubing Round at 45° | 3.5 in. | 3.5 in. |
| Tubing Round at 90° | 3.625 in. | 3.625 in. |
| Solid Round at 45° | 2.5 in. | 2.5 in. |
| Solid Round at 90° | 2.625 in. | 2.625 in. |
| Tubing Rectangle at 45° | 3-1/4 x 2-3/4 in. | 3-1/4 x 2-3/4 in. |
| Tubing Rectangle at 90° | 4-1/4 x 2-3/4 in. | 4-1/4 x 2-3/4 in. |
| Tubing Square at 45° | 3.125 in. | 3.125 in. |
| Tubing Square at 90° | 3.25 in. | 3.25 in. |
| Blade Speed | 44 RPM | 44 RPM |
| Motor | 1.6 HP - 2.35 HP | 1.6 HP - 2.35 HP |
| Voltage | 220v, 1-Phase | 220v, 1-Phase |
| Max. Vise Opening | 4.625" | 117.47 mm |
| Maximum Angle | 45° right/left | 45° right/left |
| Slotting | No | No |
| Cutting Ability | Ferrous/non-ferrous/plastics | Ferrous/non-ferrous/plastics |
| Work height | 38.5" | 977.9 mm |
| Dimensions | H 59 in. x W 26 in. x D 36 in. | H 59 in. x W 26 in. x D 36 in. |
| Weight | 450 lbs. | 450 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Optional Items - Call for price:
300674: Step-Down Transformer
301644: 78" Loading Table
301645: 78" Unloading Table
Blade Starter Pack- 3, 12" HSS Blades
Pneumatic Vice
