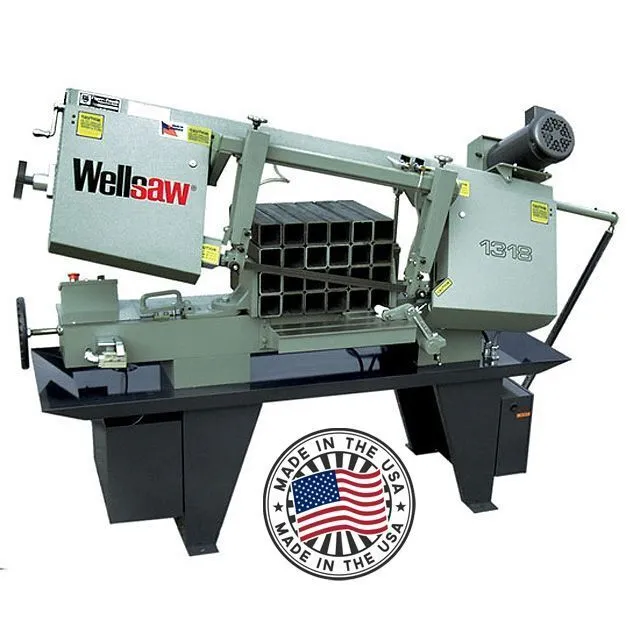

With large 13" x 18" capacity, powerful 3hp motor and precision construction the Wellsaw model 1318 gives you superior performance in the most demanding operations. Infinitely Variable Blade Speeds and Wet Cutting System. Made in the USA.
| Capacity Round | 13 in. | 13 in. |
| Capacity Rectangular | 13 x 18 in. | 13 x 18 in. |
| 45° Angle | 11 x 9-1/2 in. | 11 x 9-1/2 in. |
| Blade Size | 1 x .035 x 12 ft 6 in. (150 in.) | 1 x .035 x 12 ft 6 in. (150 in.) |
| Blade Speed | Infinitely Variable 70-375 SFPM | Infinitely Variable 70-375 SFPM |
| Blade Tension | Manual Rite-Tension | Manual Rite-Tension |
| Band Wheels | 15 in. Diameter Cast Iron | 15 in. Diameter Cast Iron |
| Motor | 3 HP TEFC * | 3 HP TEFC * |
| Power | 208-230-460v/60/3-phase (specify) ** | 208-230-460v/60/3-phase (specify) ** |
| Bed Height | 29" | 736.6 mm |
| Coolant Tank Capacity | 8 gal | 30.3 L |
| Coolant Submersible Pump | 3 GPM | 3 GPM |
| Blade Guides | Carbide Guides with Rollers | Carbide Guides with Rollers |
| Feed Control | Variable Hydraulic / Counterbalance Spring | Variable Hydraulic / Counterbalance Spring |
| Vise Control | Quick Acting/Manual Screw | Quick Acting/Manual Screw |
| Vise Swivels | To 45° | To 45° |
| Dimensions | 40 W x 84 L in. | 40 W x 84 L in. |
| Weight | 955 lbs. | 955 lbs. |
* Optional: 2 HP single phase ODP - Call for price
** Please Specify: 208-230-460v/60/3ph or 115-208-230v/60/1ph
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Available Factory Installed Options - Call for price:
Flush Hose with 8.5 GPM Pump
Powered Frame Raise and/or Powered Vise
Laser Line Pointer
Casters (Set of 4, 2 Locking)
NFPA Electrics (with Disconnect)
Work Light with Transformer
Stock Stand, 18"
5' Non-Powered Roller Conveyor
10' Non-Powered Conveyors
Please Contact Sierra Victor Industries 386-304-3720 for Additional Options
OPTIONAL MODELS IN THE 1318 FAMILY - Call for price:
Model 1338 with 38" Width Capacity
Model 1316S Swivel Head Miter Saw to 60°
All Models Available with PLC Controlled Semi-Automatic Operation
