New | in-Stock

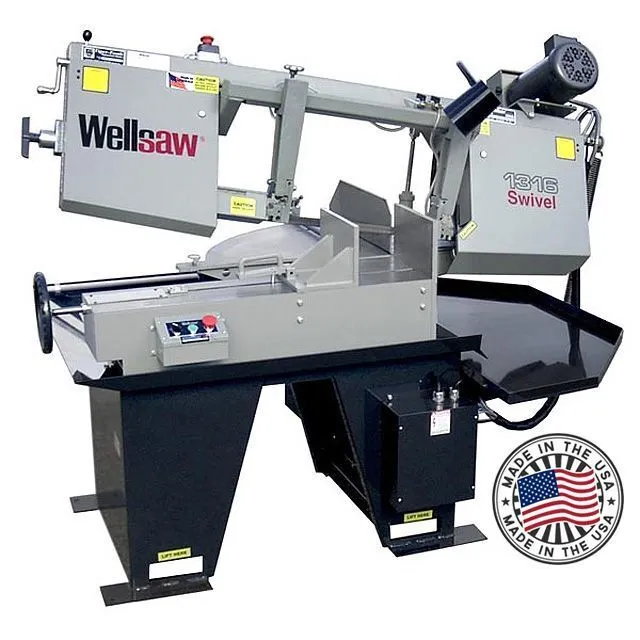

NEW WELLSAW 1316S

Florida, United States
Asking Price
USD $16,665.00
1 available
3,882Listings|10Followers
Overview
Horizontal Band Saws

Sierra Victor Machinery is an Authorized Dealer for Wellsaw in Florida and Georgia Only.

The WELLSAW 1316S Swivel Head Miter Bandsaw has a 13" x 16" capacity. Made in USA. Saw Head Swivels on Precision Ball Bearings and Miter to 60° — No Need to Swivel the Stock. Wet Cutting System with Full Surround Pan and Infinitely Variable Blade Speeds.

Specs
Round at 90°
13 in.
13 in.
Round at 45°
11-1/2 in.
11-1/2 in.
Round at 60°
8 in.
8 in.
Rectangle at 90°
13 H x 16 W in.
13 H x 16 W in.
Rectangle at 45°
13 H x 11-1/2 W in.
13 H x 11-1/2 W in.
Rectangle at 60°
8-1/2 H x 8 W in.
8-1/2 H x 8 W in.
Blade Size
1" x .035" x 12'6" (150")
1" x .035" x 12'6" (150")
Blade Speed
Infinitely Variable 70-375 SFPM
Infinitely Variable 70-375 SFPM
Blade Tension
Manual Rite-Tension
Manual Rite-Tension
Band Wheels
15" Diameter Cast Iron
15" Diameter Cast Iron
Motor
3hp Motor 3 Phase TEFC; 2hp Single Phase ODP
3hp Motor 3 Phase TEFC; 2hp Single Phase ODP
Power
115-208-230/60/1; 208-230-460/60/3
115-208-230/60/1; 208-230-460/60/3
Bed Height
35"
889 mm
Coolant Tank Capacity
8 gal
30.3 L
Coolant Submersible Pump
115V/.6 Amp/3 GPM
115V/.6 Amp/3 GPM
Blade Guides
Carbide Guides with Rollers
Carbide Guides with Rollers
Feed Control
Variable Hydraulic
Variable Hydraulic
Stock Stop Projection
25"
635 mm
Vise Control
Quick Acting/Manual Screw
Quick Acting/Manual Screw
Shipping Weight
1,600 lb
725.7 kg
Dimensions
90" W x 76" L
90" W x 76" L

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Machine
WARRANTY: 90 DAY – Parts

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
