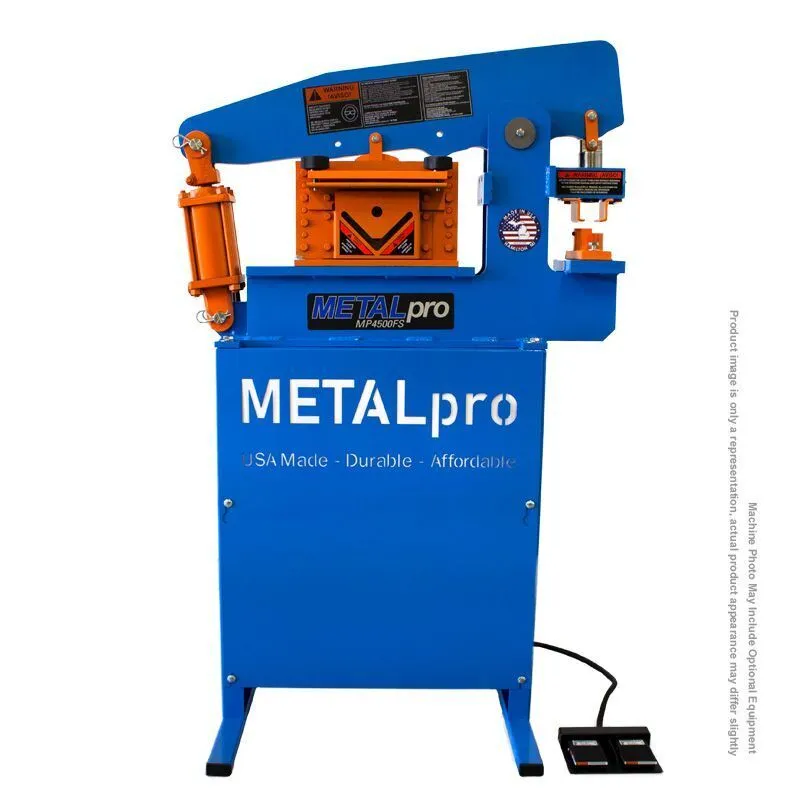

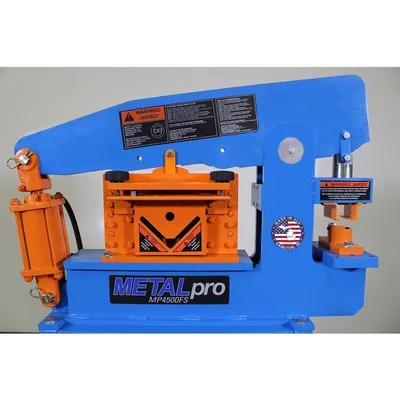

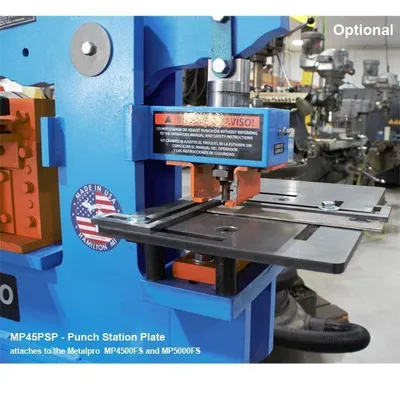

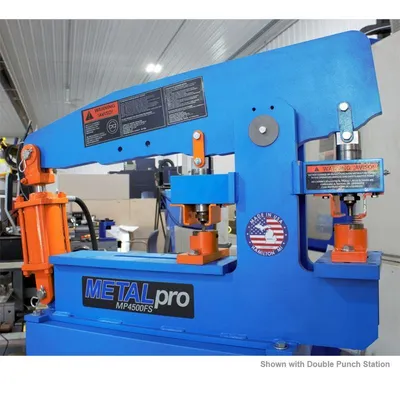

The METALPRO MP4500FS 45 Ton Ironworker is ready with die holder, stripper, and punch retaining nut. The punch station can be used with a range of notchers, custom shape punching, and forming operations.The outboard punching station delivers 45 tons at the punch and is designed to work with a variety of METALpro accessories. Shear handles flat bar, round, square, and angles in one quick set up. All wear parts and blades made from heat treated, high grade tool steel.
| Punch Tonnage | 45 T | 40,823.4 kg |
| Flat Bar Shear | 3/8 x 6 and 1/4 x 8 in. | 3/8 x 6 and 1/4 x 8 in. |
| Angle Shear - Maximum Capacity | 1/4 x 4 x 4 in. | 1/4 x 4 x 4 in. |
| Rod Shear - Round Rod (Max.) | 3/4 in. | 3/4 in. |
| Rod Shear - Square Rod (Max.) | 5/8 in. | 5/8 in. |
| Picket Tool | 1/2, 5/8, 3/4 inch (optional) | 1/2, 5/8, 3/4 inch (optional) |
| Throat Depth | 3.75" | 95.25 mm |
| Strokes Per Minute in Light Material | approximately 6-8 | approximately 6-8 |
| Accessory - Brake | 25 Tons | 25 Tons |

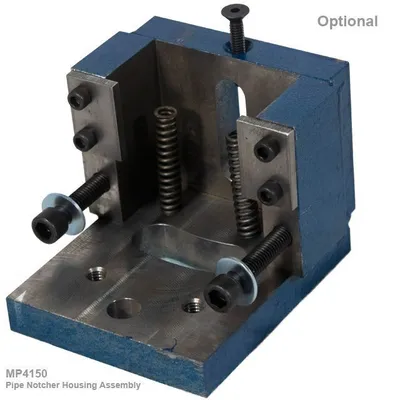

| Accessory - Notcher | 1/2, 3/4, 1, 1-1/4, 1-1/2, 2 inch sch. 40 (optional) | 1/2, 3/4, 1, 1-1/4, 1-1/2, 2 inch sch. 40 (optional) |
| Accessory - Pressing | Custom tooling available | Custom tooling available |
| Motor | 1.5 HP | 1.5 HP |
| Electrics | 110v | 110v |
| Hydraulics | 2900 PSI | 2900 PSI |
| Oil Capacity/Reservoir | 1.5 gal | 5.7 L |
| Dimensions | Width 24 x Height 59 x Length 36-1/2 in. | Width 24 x Height 59 x Length 36-1/2 in. |
| Weight | 550 lbs. | 550 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

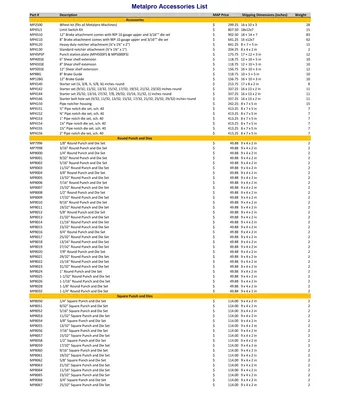

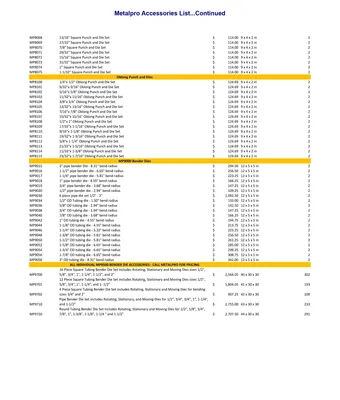

Optional Items:

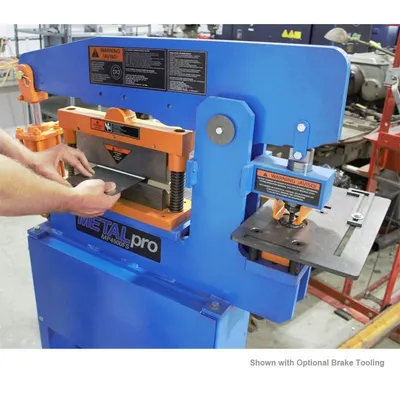

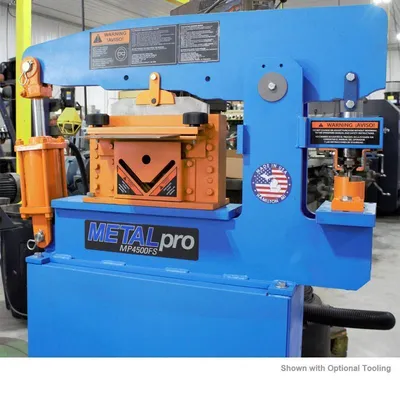

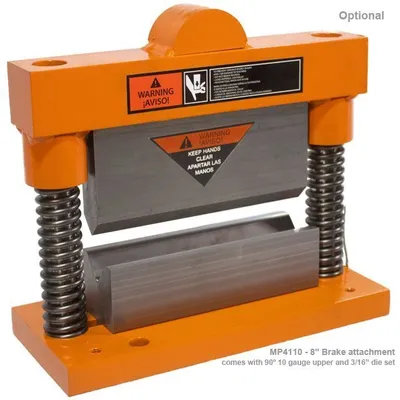

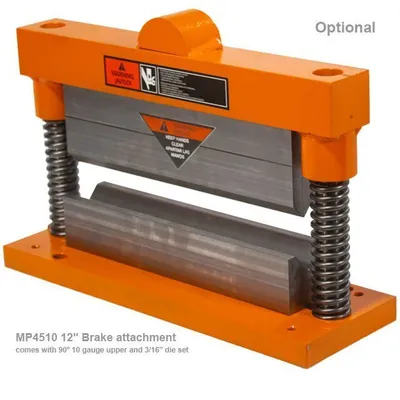

* Optional brakes and custom tooling sold separately - Contact us for more information

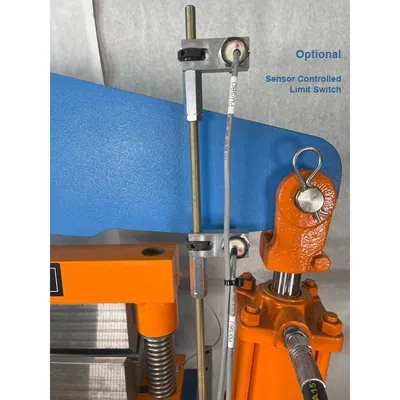

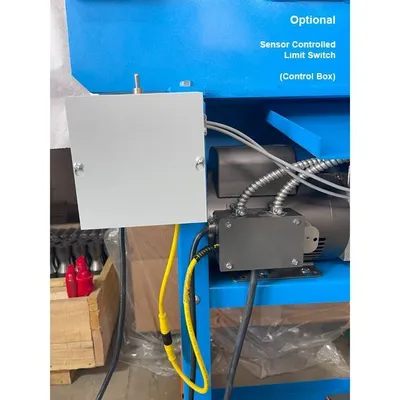

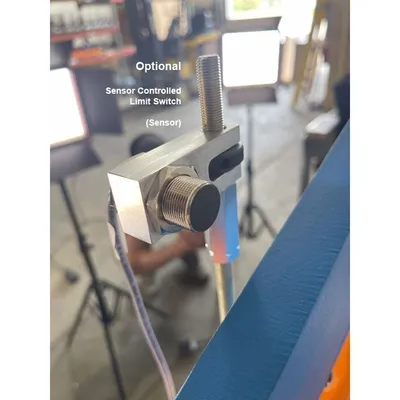

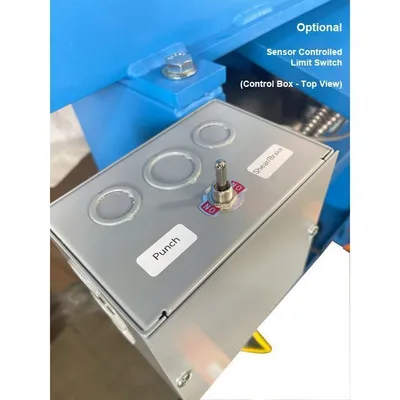

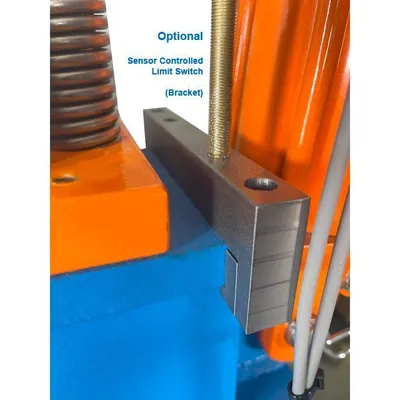

* MP45LS - Limit Switch Kit: The MP45LS is a sensor controlled limit switch that automates your Metalpro Ironworker. The two sensors (one return sensor, and one stop sensor) reads the top and bottom of the arm. The sensors allow for micro adjustments for precise stroke control. This ensures the exact stroke height that you are looking for whether forming/bending, punching or shearing with your Metalpro ironworker.
* Punching/Shearing - Control your stroke height with just one press of the included foot pedal, speeding up your punching and shearing operation, saving you time and money.
* Forming/Bending - The stop and return sensors allow you to form within a quarter of a degree, helping with repeat air bends, taking the guesswork out of it.
MP45LS - Sensor Controlled Limit Switch Kit, 5 lbs., 24 x 6 x 2 in.: $950.00
MP2500 - Wheel kit (fits all Metalpro Machines): $299.25
