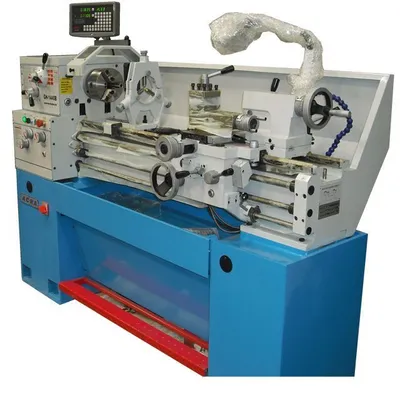

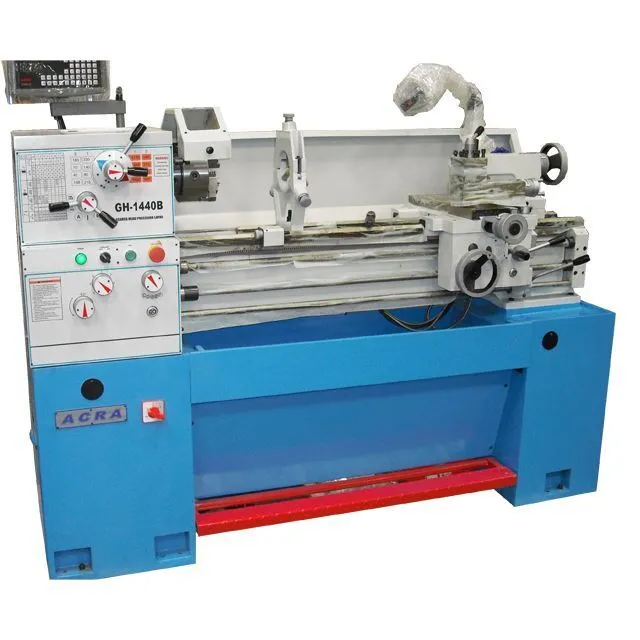

ACRA 1440B Precision Engine Lathe has a 14" x 40" capacity.16 speeds all geared headstock with 3 HP (2.4kW) three phase motor, 110V/220V (1ph) or 220V (3ph).Standard equipment includes: 6" 3-Jaw Chuck, 8" 4-Jaw Chuck, Steady/Follow Rest, Coolant System, 4 Way Tool Holder, Full Length Splash Guard, Micro Bed Stop, Halogen Light, Chuck Guard and 2-Axis SINO DRO, installed
| Lathe Type | Precision Engine | Precision Engine |
| Swing Over Bed | 14" | 355.6 mm |
| Distance Between Centers | 40" | 1,016 mm |
| Spindle Bore | 1.5" | 38.1 mm |
| Spindle Nose | D1-4 | D1-4 |
| Motor | 0.1 hp | 0 kW |
| Phase | 1 | 1 |
| Voltage | 110/220v* | 110/220v* |
| Dimensions | 71-3/5" x 29" x 48-4/5" | 71-3/5" x 29" x 48-4/5" |
| Weight | 1,950 lbs. | 1,950 lbs. |
*220V (3-phase) - available
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
OPTIONAL ITEMS - CALL FOR PRICE:
Face Plate
Taper Attachment
Taper Attachment Installation
Lever Type 5C Collet Closer JFK
Import Collet Closer (Taiwan)
Newall Digital Read-Out 8" x 40" DP700
Newall Digital Read-Out 8" x 40" NMS300
Acu-Rite Digital Read-Out 8" x 40" 203
Acu-Rite Digital Read-Out 8" x 40" 303
Sony or Fagor or Mitutoyo Digital Read-Out
D.R.O. Installation
Aloris Tool Post Set (BXA) 5pc
Import Quick Change Tool Holder
Live Center MT#3
460V for 2-speed motor
