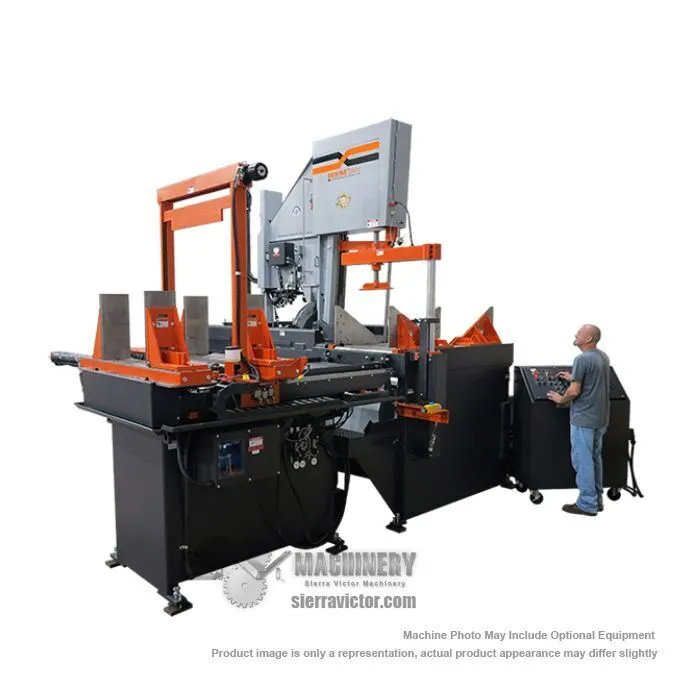

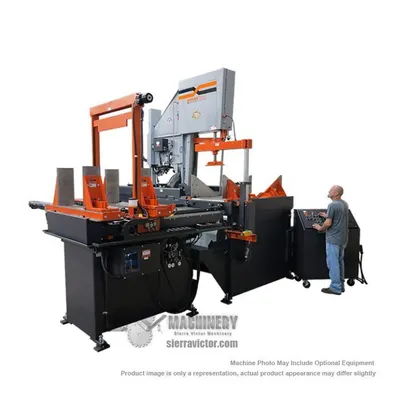

The HE&M VT200HA-60-CTS Automatic Vertical Bandsaw has a round cutting capacity of 25 inches (diameter). The VT200HA-60-CTS band saw is operated using a touch screen control that includes a material list and allows saving jobs for future use. A touch screen control operates the functions and the programmable arm can miter up to 60ᵒ in both directions.220V/3PH or 440V/3PH Electrical Motor Requirement - This is Not a Dual Voltage Machine.
| Operation Type | Semi-Automatic | Semi-Automatic |
| Capacity - Round | 0-22 in. | 0-22 in. |
| Capacity - Square | 0-22 in. | 0-22 in. |
| Capacity - Rectangular | 0-22 W x 0-30 H in. | 0-22 W x 0-30 H in. |
| Blade Size | 20' 0" L x 1.5" H x .050" | 20' 0" L x 1.5" H x .050" |
| Motor | 10 HP | 10 HP |
| Power | 220v/3-ph or 440v/3-ph ** | 220v/3-ph or 440v/3-ph ** |
| Power Source | Hydraulic | Hydraulic |
| Cantilever | Fixed | Fixed |
| Bundle Cut | Yes | Yes |
** This is Not a Dual Voltage Machine
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Optional items - Call for price:
Swing-Away Top Clamp - Main Vise
Top Clamp - Reduced Capacity Main Vise
Vise - 2nd Main
Material List w/ Larger 8" Touch Screen
Passive "Cut Watcher" System
Laser Light System
Power Raised Lift Up Rollers
Chip/Swarf Removal System - Chip Conveyor
Chip/Swarf Removal System - Manual Hand-Crank Chip Conveyor
Spray Mist Lubrication
Pedestal Mounted Control Console
5' Roller Load Table
10' Idle Roller Load Table
10' Powered Roller Load Table
5' Roller Discharge Table
10' Roller Discharge Table
10' Powered Roller Discharge Table
5' Idle Roller Stock Table
10' Idle Roller Stock Table
10' Powered Roller Stock Table
