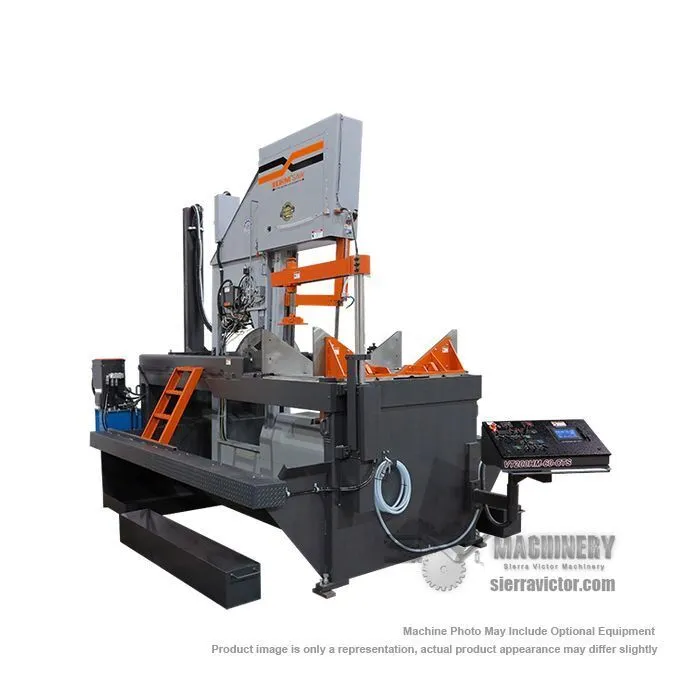

The HE&M VT200HM-60-CTS Semi-Automatic Vertical Bandsaw has a round cutting capacity of 25 inches (diameter). The VT200HM-CTS band saw is operated by a touch screen control that is located in a swing-away console at the front of the saw and allows the operator to enter an angle and the arm will travel to that position and stop. The arm has a forward cant.220V/3PH or 440V/3PH Electrical Motor Requirement - This is Not a Dual Voltage Machine.
| Operation Type | Semi-Automatic | Semi-Automatic |
| Capacity - Round | 0-25 in. | 0-25 in. |
| Capacity - Square | 0-25 in. | 0-25 in. |
| Capacity - Rectangular | 0-25 W x 0-36 H in. | 0-25 W x 0-36 H in. |
| Blade Size | 24' 8" L x 2" H x .063" | 24' 8" L x 2" H x .063" |
| Motor | 15 HP | 15 HP |
| Power | 220v/3-ph or 440v/3-ph ** | 220v/3-ph or 440v/3-ph ** |
| Hydraulic Motor | 5 HP | 5 HP |
| Power Source | Hydraulic | Hydraulic |
| Cantilever | Fixed | Fixed |
| Bundle Cut | Yes | Yes |
** This is Not a Dual Voltage Machine
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Optional items - Call for price:
Swing-Away Top Clamp - Main Vise
Material List w/ Larger 8" Touch Screen
Laser Light System
Passive "Cut Watcher" System
Spray Mist Lubrication
Pedestal Mounted Control Console
Cold Weather Package
Hydraulic Tank Heater
5' Roller Discharge Table
10' Roller Discharge Table
5' Roller Load Table
10' Powered Roller Stock Table
