We Are an Authorized HE&M Distributor in the Following States: FL, GA, NC, SC, VA

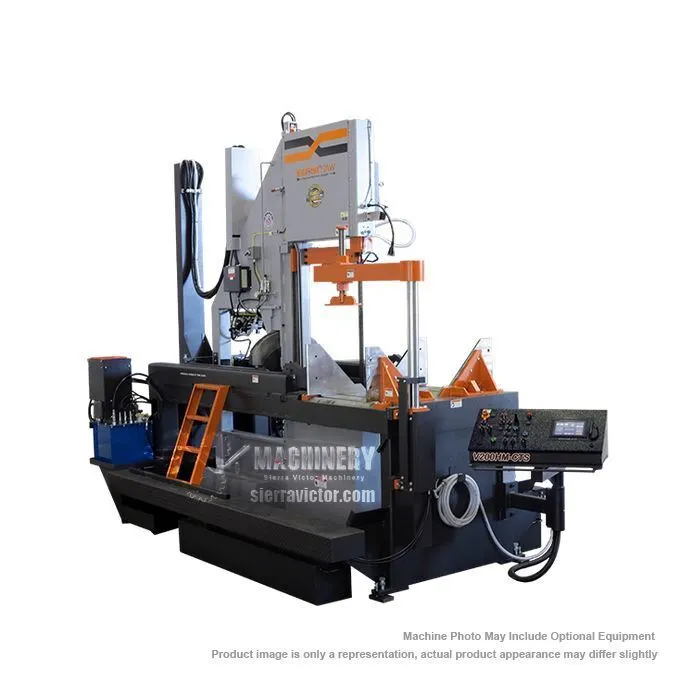

The HE&M V200HM-CTS Semi-Automatic Vertical Bandsaw has a round cutting capacity of 25 inches (diameter). The V200HM-CTS band saw is operated by a touch screen control that is located in a swing-away console at the front of the saw and allows the operator to enter an angle and the arm will travel to that position and stop.220V/3PH or 440V/3PH Electrical Motor Requirement - This is Not a Dual Voltage Machine.
| Operation Type | Semi-Automatic | Semi-Automatic |
| Capacity - Round | 0-25 in. | 0-25 in. |
| Capacity - Square | 0-25 in. | 0-25 in. |
| Capacity - Rectangular | 0-25 W x 0-36 H in. | 0-25 W x 0-36 H in. |
| Blade Size | 20' 6" L x 2" H x .063" | 20' 6" L x 2" H x .063" |
| Motor | 15 HP | 15 HP |
| Power | 220v/3-ph or 440v/3-ph ** | 220v/3-ph or 440v/3-ph ** |
| Hydraulic Motor | 5 HP | 5 HP |
| Power Source | Hydraulic | Hydraulic |
| Bundle Cut | Yes | Yes |
| Weight | 3000 | 3000 |
** This is Not a Dual Voltage Machine
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Optional items - Call for price:
Swing-Away Top Clamp - Main Vise
Material List w/ Larger 8" Touch Screen
Laser Light System
Passive "Cut Watcher" System
Pedestal Mounted Control Console
Free-Standing Control Console
Right to Left Feed Direction
Spray Mist Lubrication
5' Roller Load Table
10' Idle Roller Load Table
5' Roller Discharge Table
10' Roller Discharge Table
