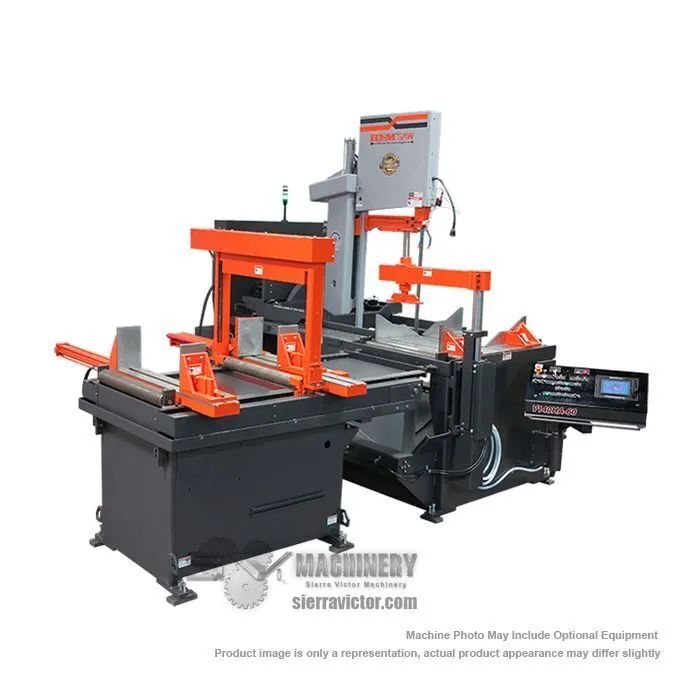

The V140 and VT140HA-60-CTS band saws vary in vertical blade orientation on the V140 and forward-canting blade on the VT140. Round Cutting Capacity is 24 inches. The touch screen control is mounted in a swing-away console and the PLC stores jobs. A hydraulic 48” bar-feed is standard; a 48” or 120” servo-driven twin-screw bar-feeds optional. 220V/3PH or 440V/3PH Electrical Motor Requirement - This is Not a Dual Voltage Machine.
| Operation Type | Automatic | Automatic |
| Capacity - Round | 0-24 in. | 0-24 in. |
| Capacity - Square | 0-24 in. | 0-24 in. |
| Capacity - Rectangular | 0-24 W x 0-31 H in. | 0-24 W x 0-31 H in. |
| Blade Size | 20' 0" L x 1.5" H x .050" | 20' 0" L x 1.5" H x .050" |
| Motor | 10 HP | 10 HP |
| Power | 220v/3-ph or 440v/3-ph ** | 220v/3-ph or 440v/3-ph ** |
| Hydraulic Motor | 5 HP | 5 HP |
| Power Source | Hydraulic | Hydraulic |
| Bar-feed | 0-48 in. (Stroke Hydraulic Motor - Multiple Index) | 0-48 in. (Stroke Hydraulic Motor - Multiple Index) |
| Bundle Cut | Yes | Yes |
** This is Not a Dual Voltage Machine
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Optional items - Call for price:
0-48" Stroke Servo Twin Ball-Screw Bar-Feed
0-120" Stroke Servo Twin Ball-Screw Bar-Feed w/ 3rd Vise
Bar-Feed Filler Plates
Swing-Away Top Clamp - Main Vise
Top Clamp - Full Capacity Main Vise
Top Clamp - Reduced Capacity Main Vise
Top Clamp - Reduced Capacity Feed Vise
Vise - 2nd Main
Vise - 3rd on Feed
Laser Light System
Chip/Swarf Removal System - Chip Conveyor
Chip/Swarf Removal System - Manual Hand-Crank Chip Conveyor
Power Raised Lift Up Rollers
Right to Left Feed Direction
Spray Mist Lubrication
Pedestal Mounted Control Console
5' Roller Discharge Table
10' Roller Discharge Table
10' Clutched Powered Discharge Table
5' Idle Roller Stock Table
10' Idle Roller Stock Table
10' Powered Roller Stock Table
