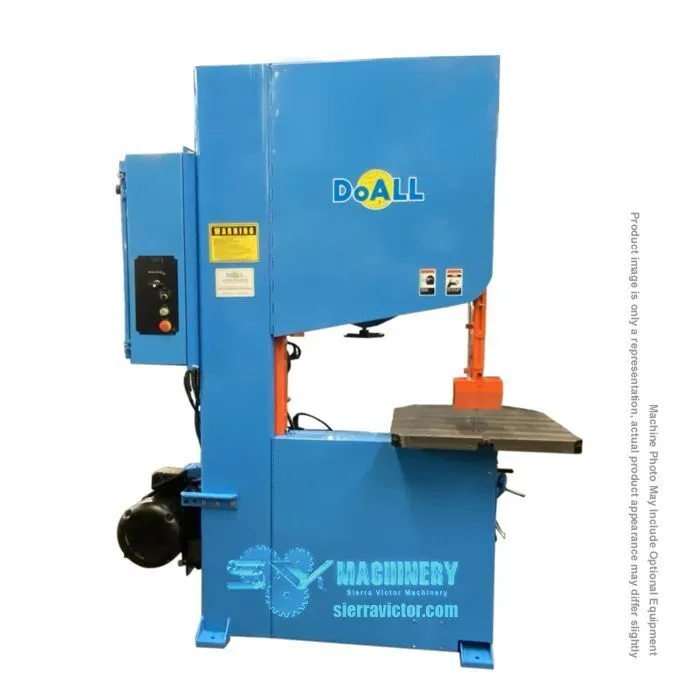

The DoALL Zephyr high velocity band saw machine has a 15-hp AC inverter band drive with soft motor start and dynamic braking system. This is the ideal saw for friction cutting applications – including exotic materials, such as Titanium and Inconel. The Machine Capacity is w 36" x h 20" (914mm x 381mm).
| Specialty | Exotic Materials | Exotic Materials |
| Production Level | High | High |
| Machine Capacity | W 36 x H 20 in. (914 x 381mm) | W 36 x H 20 in. (914 x 381mm) |
| Blade Length | 234 in. | 234 in. |
| Blade Width | 1/4 to 1 in. | 1/4 to 1 in. |
| Blade Speeds - Low Range | 1,000-4,000 fpm * | 1,000-4,000 fpm * |
| Blade Speeds - Medium Range | 4,000-8,000 fpm * | 4,000-8,000 fpm * |
| Blade Speeds - High Range | 10,000-15,000 fpm * | 10,000-15,000 fpm * |
| Motor | 15 HP | 15 HP |
| Power | 208v, 230v or 460v-3ph-60Hz Wye configuration ** | 208v, 230v or 460v-3ph-60Hz Wye configuration ** |
| Total Amp Draw | (FLA) 64.1 (208) 47 (230) 28.5 (460) Amps | (FLA) 64.1 (208) 47 (230) 28.5 (460) Amps |
| Coolant System | Flood - No | Flood - No |
| Coolant System - Mist Lubricator | Optional | Optional |
| Material Pass Height | 41" | 1,041.4 mm |
| Dimensions | 82 x 37 x 104 in. | 82 x 37 x 104 in. |
| Weight | 4,500 lbs. | 4,500 lbs. |
* Must Specify Band Speed Range at Order Placement
** Must Specify Voltage at Order Placement
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Optional items - Call for price:
* DBW-15 welder for Carbon, Dart and Imperial bi-metal saw blade to 1" (25 mm) wide, includes flash grinder and shear
* Chip blower (requires plant air)
* Band mist lubricator (requires plant air)
* Secondary table 19" x 19"
* Standard rip fence for 30 x 30” (760 x 760 mm) table
* Disk cutting attachment. Capacity up to 36" (915 mm) diameter
* DoALL Type III super saw guides for heavy-duty and high-speed sawing. Roller type with double-row ball bearings, including a set of rollers for any single width of band:
1/4" (6 mm) guides, per set
3/8" (10 mm) guides, per set
1/2" (13 mm) guides, per set
5/8" (16 mm) guides, per set
3/4" (19 mm) guides, per set
1" (27 mm) guides, per set
* Extra sets of rollers for any single band width
1/4" (6 mm) guides, per set
3/8" (10 mm) guides, per set
1/2" (13 mm) guides, per set
5/8" (16 mm) guides, per set
3/4" (19 mm) guides, per set
1" (27 mm) guides, per set
* Additional USB stick of manuals
* Magnetic wand chip remover
* A Nationally Recognized Testing Laboratory (NRTL) is an independent third-part laboratory recognized by the United States Occupational Safety and Health Administration (OSHA) to test and certify products to applicable product safety standards
* DoALL Cut Above 10 Year Warranty Annual Investment
