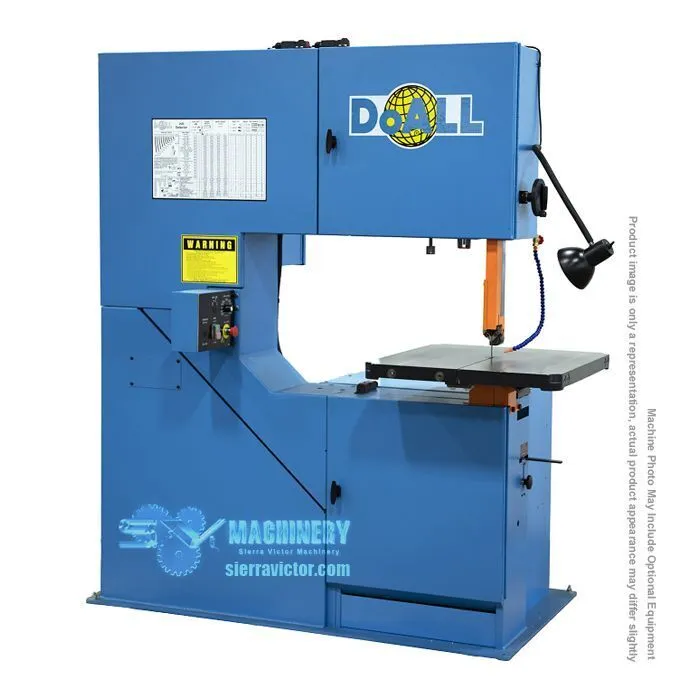

The DoALL 3613-V5 high speed, vertical contour band saw features a variable frequency 5 hp (3.75 kW) AC inverter drive controls. Machine Capacity is w 36" x h 13" (915mm x 330mm). The 3613-V5 medium production, upright metal cutting band saw is widely used in locations that cut a large variety of materials in one production day. The 3613-V5 can also be used for plastics, wood and other materials. Standard features: 5 Hp Drive Motor, Work Light, Chip Blower and Post Elevating Hand Wheel.
| Production Level | Low | Low |
| Machine Capacity | W 36 x H 13 (915 x 330mm) | W 36 x H 13 (915 x 330mm) |
| Throat Depth | 36" | 914.4 mm |
| Max. Work Height | 13" | 330.2 mm |
| Blade Length | 199 in. | 199 in. |
| Blade Width | 1/16 to 1 in. (1.5mm to 27mm) | 1/16 to 1 in. (1.5mm to 27mm) |
| File Band Length | 198" | 5,029.2 mm |
| Upper Wheel Adjustment | 2" | 50.8 mm |
| Band Wheels | Aluminum with crowned rubber tires | Aluminum with crowned rubber tires |
| Saw Blade Speeds | 550 to 5,500 fpm (170 to 1,625 m/min) | 550 to 5,500 fpm (170 to 1,625 m/min) |
| Table Size | 26 x 26 in. (660 x 660mm) | 26 x 26 in. (660 x 660mm) |
| Table Height | 40" | 1,016 mm |
| Tilt | 45° right and 10° left | 45° right and 10° left |
| Motor | 5 HP (3.75kW) | 5 HP (3.75kW) |
| Power | 208v, 230v or 460v-3ph-60Hz Wye configuration ** | 208v, 230v or 460v-3ph-60Hz Wye configuration ** |
| Total Amp Draw | (FLA) 10.7 (208) 10.7 (230) 5.3 (460) Amps | (FLA) 10.7 (208) 10.7 (230) 5.3 (460) Amps |
| Coolant System - Mist Lubricator | Optional | Optional |
| Height | 82" | 2,082.8 mm |
| Material Pass Height | 39" | 990.6 mm |
| Dimensions | 39 x 81 x 82 in. | 39 x 81 x 82 in. |
| Weight | 1,550 lbs. | 1,550 lbs. |
** Must Specify at Order Placement
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
