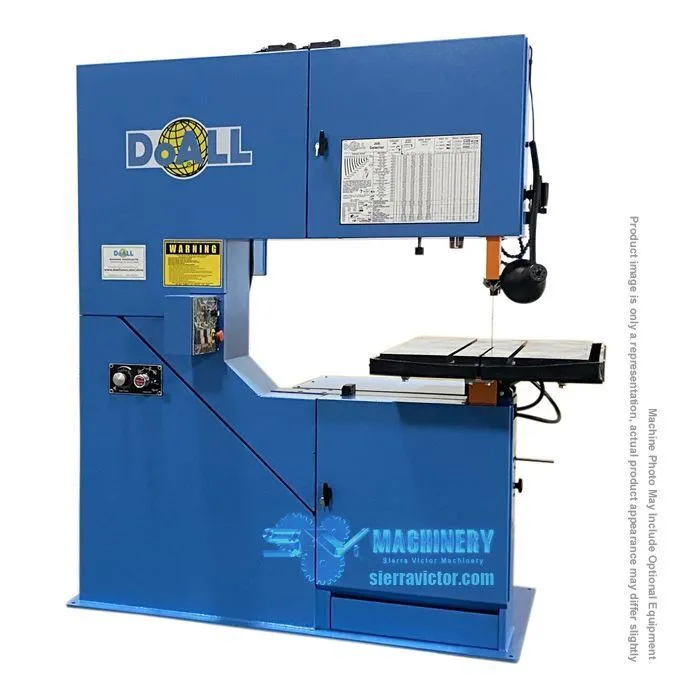

The DoALL 3612-VH has a dynamic range of features -- band speeds that permit contouring, cut-off, and machining of almost any material. Machine Capacity: w 36" x h 12" (915mm x 305mm). The 3612-VH saws are widely used in machine shops, mold shops, maintenance departments, schools and in other areas where cutting a wide variety of materials is required. Standard features: Dual-Range Transmission and Post Elevating Hand Wheel.
| Production Level | Low | Low |
| Machine Capacity | W 36 x H 12 (915 x 305mm) | W 36 x H 12 (915 x 305mm) |
| Blade Length | 154 in. | 154 in. |
| Blade Width | 1/8 to 1 in. | 1/8 to 1 in. |
| Blade Speeds - Low Range | 30-320 fpm | 30-320 fpm |
| Blade Speeds - High Range | 550-5500 fpm | 550-5500 fpm |
| Band Tension | Manual | Manual |
| Motor | 3 HP | 3 HP |
| Power | 208v, 230v or 460v-3ph 60Hz, Wye configuration ** | 208v, 230v or 460v-3ph 60Hz, Wye configuration ** |
| Total Amp Draw | (FLA) 14.3 (208) 13.7 (230) 9.8 (460)Amps | (FLA) 14.3 (208) 13.7 (230) 9.8 (460)Amps |
| Hydraulic Motor | 1.5 HP | 1.5 HP |
| Hydrauilc Tank | 3 gal | 11.4 L |
| Coolant System | No | No |
| Coolant System - Mist Lubricator | Optional | Optional |
| Material Pass Height | 39" | 990.6 mm |
| Dimensions | 56 x 44 x 80 in. | 56 x 44 x 80 in. |
| Weight | 1,900 lbs. | 1,900 lbs. |
** Must Specify at Order Placement
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Optional items - Call for price:
* Extended 18" hydraulic table stroke assembly.
* Extended traverse work table: 1100 lb. capacity, four (4) 2" T-Slots, 34 x 42" table area, reduces work height by approximately 4"
* Secondary table 17" x 19"
* Work holding vise to fit table "T" slots (Must use option A or B )
* DBW-15 welder with grinder, column mounted, for 240 volts and below
* DBW-15 welder with grinder, column mounted, for 460 volt
* Extended work height 6 inch increments - Call for quote
* Work holding jaw with handles
* Band mist lubricator-80 psi plant air required
* Disk cutting attachment - Capacity 2-1/2 - 30" diameter
* Magnetic wand chip remover
* Flood coolant
* Extra set of heavy duty saw guide blocks with carbide backup for 1/4" to 1" bands
* Additional set of hardened tool steel reversible saw guide inserts (set of 4) for any single band width:
1/4" (6 mm)
3/8" (10 mm)
1/2" (13 mm)
5/8" (16 mm)
3/4" (19mm)
1" (27 mm)
* Optional tungsten-carbide, single-faced saw guide inserts (set of 4) for any single band width:
1/4" (6 mm)
3/8" (10 mm)
1/2" (13 mm)
5/8" (16 mm)
3/4" (19 mm)
1" (27 mm)
* Additional USB stick of manuals
* A Nationally Recognized Testing Laboratory (NRTL) is an independent third-part laboratory recognized by the United States Occupational Safety and Health Administration (OSHA) to test and certify products to applicable product safety standards
* Five (5) hours installation and operator training
* DoALL Cut Above 10 Year Warranty Investment
