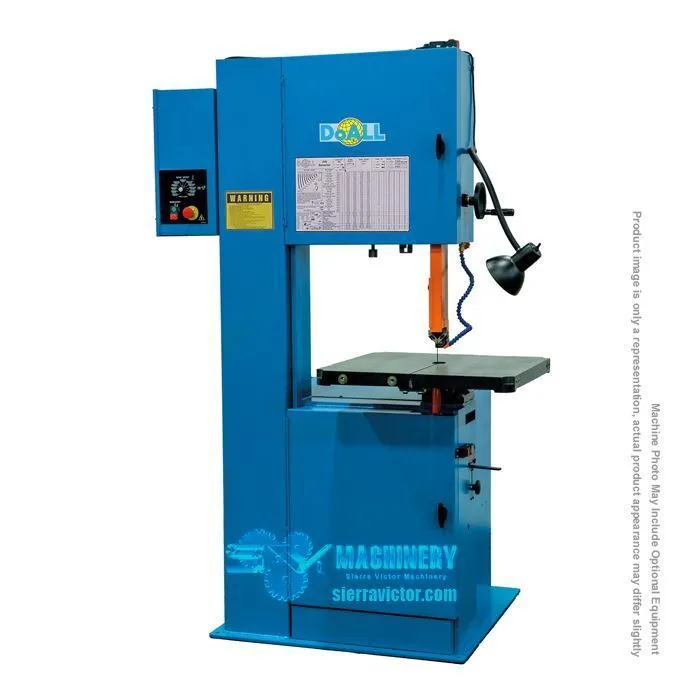

NEW DOALL 2013-V5

It is perfect for medium-level production that requires the flexibility to cut nonferrous metals such as aluminum/copper in addition to wood/plastics, without needing several machines for each application; making the 2013-V5 upright metal cutting saw is among the most versatile w 20" x h 13" (508mm x 330mm) sawing machines on the market today.

** Must Specify at Order Placement

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

Optional Items - Call for price:
* 12" Travel glide table with (2) point safety buttons on the handles for blade start
* 18" Travel glide table with (2) point safety buttons on the handles for blade start
* Work holding vise to fit table "T" slots (Must use option A , B, or D)
* Extended traverse work table: 1100 lb. capacity, four (4) 2" T-Slots, 34 x 42" table area, reduces work height by approximately 4"
* DBW-15 welder with grinder, column mounted, for 240 volts and below
* DBW-15 welder with grinder, column mounted, for 460 volt
* Extended work height 6 inch increments - Call for quote
* Work holding jaw with handles
* Band mist lubricator-80 psi plant air required
* Standard rip fence that attaches to 26 x 26" table
* No. 2 standard cut-off and mitering attachment for 26 x 26" table
* Disk cutting attachment - Capacity 2-1/2 - 30" diameter
* Magnetic wand chip remover
* High-speed guide blocks for bands 1/8" to 1/2" (1.5 - 13 mm), speeds to 6,000 fpm (1,830 m/min) less inserts (per pair)
* Heavy-duty (high-speed) saw guide blocks for bands 1/8" to 1/2" (1.5 - 13 mm), speeds to 6,000 fpm (1,830 m/min) less inserts (per pair)
* Heavy-duty (high-speed) saw guide blocks for bands 5/8" to 3/4" (16 - 19mm), speeds to 6,000 fpm (1,830 m/min) less inserts (per pair)
* Heavy-duty (high-speed) saw guide blocks for 1" (27 mm) band, speeds 6,000 fpm (1,830 m/min) less inserts (per pair)
* Heavy-duty (high-speed) saw guide blocks with carbide-faced backup for bands 1/8" to 1/2" (1.5 - 13 mm), speeds to 6,000 fpm (1,830 m/min) less inserts (per pair)
* Heavy-duty (high-speed) saw guide blocks with carbide-faced backup bearings for 5/8" and 3/4" (16 and 19 mm) bands, speeds to 6,000 fpm (1,830 m/min) less inserts (per pair)
* Heavy-duty (high-speed) saw guide blocks with carbide-faced backup bearings for 1" (27 mm) bands only, speeds to 6,000 fpm (1,830 m/min) less inserts (per pair)

* Additional set of hardened tool steel reversible saw guide inserts (set of 4) for any single band width:
1/8" (3 mm)
3/16" (5 mm)
1/4" (6 mm)
3/8" (10 mm)
1/2" (13 mm)
5/8" (16 mm)
3/4" (19mm)
1" (27 mm)

* Optional tungsten-carbide, single-faced saw guide inserts (set of 4) for any single band width:
1/4" (6 mm)
3/8" (10 mm)
1/2" (13 mm)
5/8" (16 mm)
3/4" (19 mm)
1" (27 mm)

* Type I high-speed roller guide blocks, less rollers (per pair)
Set of rollers for band saw width:
1/4" (6 mm)
3/8 (9 mm)
1/2" (13 mm)

* Type II high-speed roller saw guide blocks, less rollers (per pair) reduces work height 1" (27 mm) and restricts table tilt to 27°

* Set of Type II rollers for band saw width:
1/4" (6 mm)
3/8" (9 mm)
1/2" (13 mm)
5/8" (16 mm)
3/4" (19 mm)
1" (27 mm)

* Additional USB stick of manuals
* A Nationally Recognized Testing Laboratory (NRTL) is an independent third-part laboratory recognized by the United States Occupational Safety and Health Administration (OSHA) to test and certify products to applicable product safety standards
* Five (5) hours installation and operator training
* DoALL Cut Above 10 Year Warranty Annual Investment
