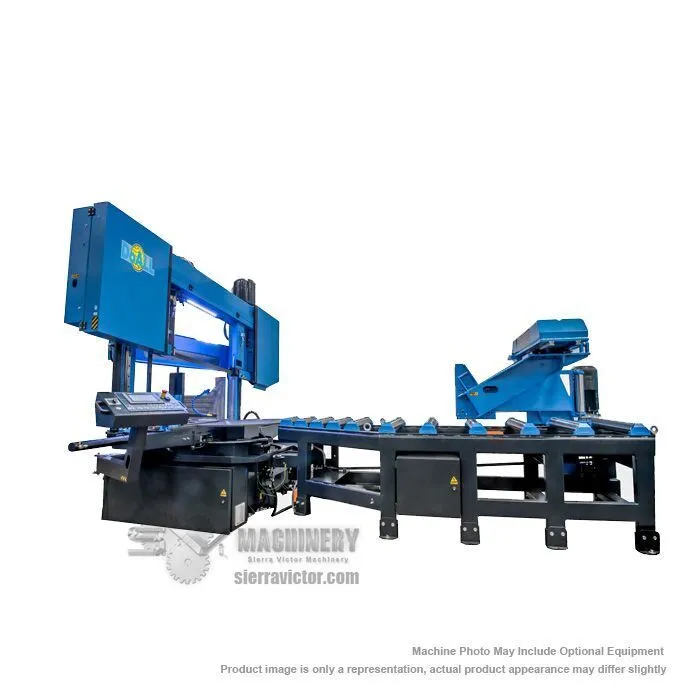

The top-of-the line DoALL DCDS-750NC automatic band saw features a dual column, dual mitering saw head with extreme high production capabilities. Machine Capacity: w 29.5" x h 18.75"; Hollow Tube: 19.5" (500mm); Round Solid: 9" (229mm) It is the perfect automated band saw for large materials to be cut at 60 degree angles (left and Right) as well as vertical straight cuts. Standard Features: Siemens Automatic Touch Screen Controls, Automatic Guide Arm, Flood Coolant and Automatic Feed Control.
| Production Level | Extreme | Extreme |
| Machine Capacity | W 29.5 x H 18.75 in. | W 29.5 x H 18.75 in. |
| Hollow Tube | 19.5 in. (500mm) | 19.5 in. (500mm) |
| Round Solid | 9 in. (229mm) | 9 in. (229mm) |
| Blade Motor | 7.5 HP | 7.5 HP |
| Blade Speed | 65-328 fpm | 65-328 fpm |
| Saw Blade Size | 1-1/2 W x 256 L in. | 1-1/2 W x 256 L in. |
| Saw Blade Tension | Hydraulic | Hydraulic |
| Power | 460v-60Hz, 3-Phase Wye configuration | 460v-60Hz, 3-Phase Wye configuration |
| Total Amp Draw | 27 amps (FLA) | 27 amps (FLA) |
| Coolant Motor | 0.2 HP | 0.2 HP |
| Coolant system - Mist Lubricator | Yes | Yes |
| Coolant system - Flood | Yes | Yes |
| Hydraulic Motor | 1 HP | 1 HP |
| Hydraulic System - Reservoir Size | 12 gal | 45.4 L |
| Hydraulic Oil | 10 gal | 37.9 L |
| Material Pass Height | 31.5" | 800.1 mm |
| Indexer - Length Per-Stroke | 78.5" | 1,993.9 mm |
| Indexer - Maximum Index Strokes Length | 999" | 25,375 mm |
| Indexer - Remnant Length | 5" | 127 mm |
| Dimensions | 142 x 177 x 95 in. (W x L X H) | 142 x 177 x 95 in. (W x L X H) |
| Weight | 9,150 lbs. | 9,150 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Optional Items - Call for price:
* 2.6 ft Heavy-duty output conveyor for angle cutting with drip pan/gutter - 31.5"" cylinder width - 1142 lbs/ft capacity
* 6.6 ft (2000mm) Input or output conveyor with drip pan/gutter - 31.5" cylinder width - 1142 lbs/ft capacity
* Single fixed vertical guide roller - 11" cylinder heights - Attaches to RDT for operation
* Single adjustable vertical guide roller - Adjusts up to 31.5" cylinder width - Requires RBR for operation
* Single adustable horizontal conveyor roller - 1543 lbs/ft capacity
* Worm chip conveyor for long chips - includes chip pan **16 week lead time
* Wear parts service kit - contains wear plates, guides, band brushes
* Chip pan with drain
* Handle for chip box
* Magnetic wand chip remover
* Additional USB stick of manuals
* A Nationally Recognized Testing Laboratory (NRTL) is an independent third-part laboratory recognized by the United States Occupational Safety and Health Administration (OSHA) to test and certify products to applicable product safety standards
* DoALL Cut Above 10 Year Warranty Annual Investment
