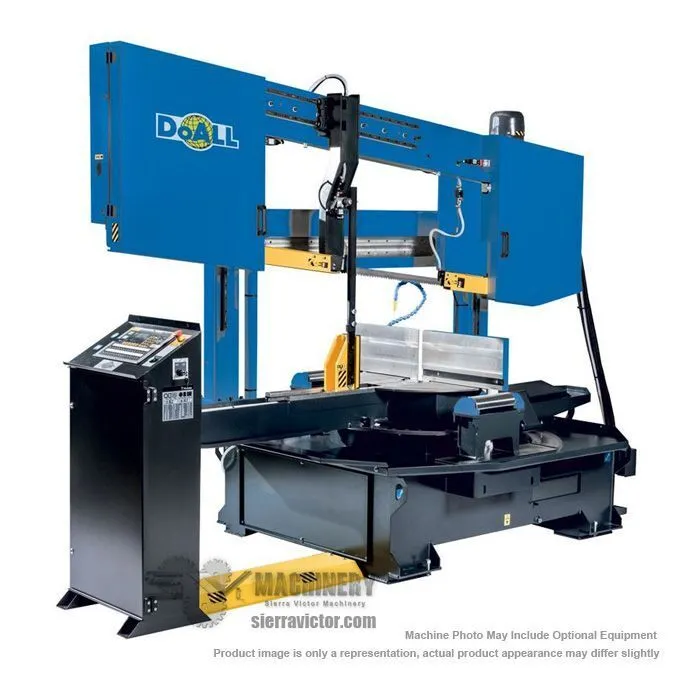

The DoALL DCDS-750SA high production, horizontal semi-automatic, dual column, dual mitering metal cutting band saw offers up to w 29.5" x h 18.75" (480mm x 750mm) rectangular and a 19.5" (500mm) round tube cutting capacity. The DCDS-750SA is ideal for the production sawing of a large variety of materials including, but not limited to, structural materials, tubes, stainless and tool steel. The DoALL band saw has a touch screen display controller for easy operation. The operator is safely removed from the saw head and blade during cutting.
| Production Level | Extreme | Extreme |
| Cutting Capacity | W 29.5 x H 18.75 in. (750 x 480mm) | W 29.5 x H 18.75 in. (750 x 480mm) |
| Cutting Capacity Round | 19.5 in. (500mm) / Solid Tube: 9 in. (230mm) | 19.5 in. (500mm) / Solid Tube: 9 in. (230mm) |
| Blade Size | 1-1/2 x 256 in. (W x L) | 1-1/2 x 256 in. (W x L) |
| Blade Tension | Hydraulic | Hydraulic |
| Blade Speed | 65-328 fpm | 65-328 fpm |
| Blade Motor | 7.5 HP | 7.5 HP |
| Power | 460v-60Hz-3ph, Wye configuration | 460v-60Hz-3ph, Wye configuration |
| Prewired | 15 Amps (FLA) | 15 Amps (FLA) |
| Hydraulic Motor | 3 HP | 3 HP |
| Hydraulic Oil Tank Capacity | 3.4 gal | 12.9 L |
| Coolant System | Flood | Flood |
| Coolant Motor | 0.16 HP | 0.16 HP |
| Coolant Tank Capacity | 10.5 gal | 39.7 L |
| Dimensions | 130 x 70 x 87 in. | 130 x 70 x 87 in. |
| Weight | 4,409 lbs. | 4,409 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Optional items - Call for price:
* 2.6 ft Heavy-duty input conveyor for angle cutting with drip pan/gutter -31.5" cylinder width - 1142 lbs/ft capacity
* 2.6 ft Heavy-duty output conveyor for angle cutting with drip pan/gutter - 31.5" cylinder width - 1142 lbs/ft capacity
* 6.6 ft (2000mm) Input or output conveyor with drip pan/gutter - 31.5" cylinder width - 1142 lbs/ft capacity
* Single fixed vertical guide roller - 11" cylinder heights - Attaches to RDT for operation
* Single adjustable vertical guide roller - Adjusts up to 31.5" cylinder width -Requires RBR for operation
* Single adustable horizontal conveyor roller - 1,543 lbs/ft capacity
* Worm chip conveyor for long chips - includes chip pan - 16 week lead time
* 5 ft. Tape work stop (Mounts on Conveyor)
* 10 ft. Tape work stop (Mounts on Conveyor)
* 5 ft. Digital work stop (Mounts on Conveyor)
* 10 ft. Digital work stop (Mounts on Conveyor)
* Wear parts service kit - contains wear plates, guides, band brushes
* Chip pan with drain
* Handle for chip box
* Magnetic wand chip remover
* Additional USB stick of manuals
* A Nationally Recognized Testing Laboratory (NRTL) is an independent third-part laboratory recognized by the United States Occupational Safety and Health Administration (OSHA) to test and certify products to applicable product safety standards
