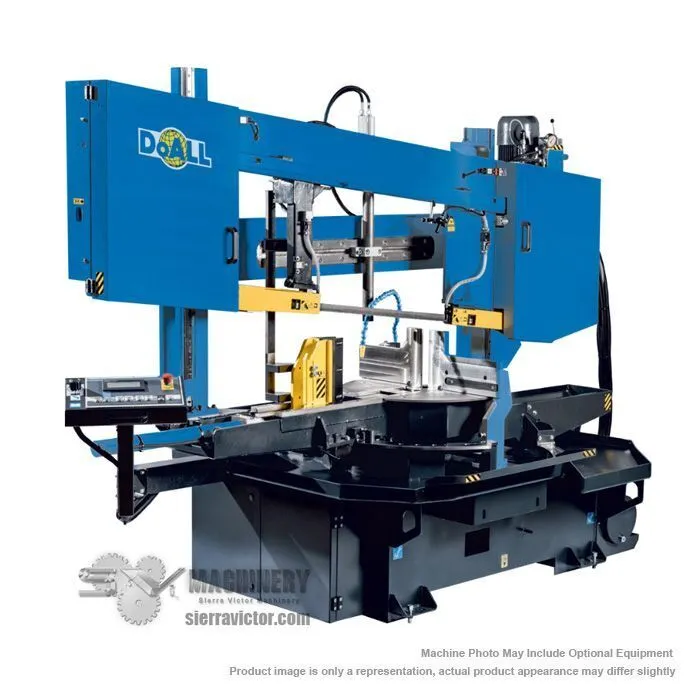

The DoALL DCDS-600SA high production semi-automatic, dual column, dual mitering metal cutting band saw offers up to 24” wide by 17” tall (600mm x 440mm) rectangular cutting capacity and 18.5″ round tube capacity. A wide variety of materials can be easily turned into parts, including, but not limited to, structural materials, stainless and tool steel. Standard Features: Front and Rear Vise Nesting, Mist-Style Band Lubrication, Mitsubishi Digital Controls.
| Production Level | Extreme Duty | Extreme Duty |
| Cutting Capacity | W 24 x H 17 (600 x 440mm) | W 24 x H 17 (600 x 440mm) |
| Cutting Capacity Round | 18.5 in (470mm) / Solid Tube: 8 in. (205mm) | 18.5 in (470mm) / Solid Tube: 8 in. (205mm) |
| Blade Size | 1-1/4 x 238 in. (W x L) | 1-1/4 x 238 in. (W x L) |
| Blade Tension | Hydraulic | Hydraulic |
| Blade Speed | 65-328 fpm | 65-328 fpm |
| Blade Motor | 5 HP | 5 HP |
| Power | 460V-60Hz-3ph, Wye configuration | 460V-60Hz-3ph, Wye configuration |
| Amperage Draw | 11 Amps (FLA) | 11 Amps (FLA) |
| Hydraulic Motor | 3.8 HP | 3.8 HP |
| Hydraulic Oil Tank Capacity | 6 gal | 22.7 L |
| Coolant System | Flood / Mist Lubricator | Flood / Mist Lubricator |
| Coolant Motor | 0.16 HP | 0.16 HP |
| Coolant Tank Capacity | 8 gal | 30.3 L |
| Material Pass Height | 31.5" | 800.1 mm |
| Dimensions | 115 x 70 x 85 in. | 115 x 70 x 85 in. |
| Weight | 3,715 lbs. | 3,715 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Optional items - Call for price:
* 2.6 ft Heavy-duty input conveyor for angle cutting with drip pan/gutter -24.4" cylinder width - 1142 lbs/ft capacity
* 2.6 ft Heavy-duty output conveyor for angle cutting with drip
pan/gutter - 24.4" cylinder width - 1142 lbs/ft capacity
* 6.6 ft (2000mm) Input or output conveyor with drip pan/gutter - 24.4" cylinder width - 1142 lbs/ft capacity
* 5 ft Medium-duty idler conveyor 24" between frames. Roller capacity 850 Ibs.
* 10 ft Medium-duty idler conveyor 24" between frames. Roller capacity 850 Ibs.
* Single fixed vertical guide roller - 11" cylinder heights - Attaches to RDT for operation
* Single adjustable vertical guide roller - Adjusts up to 24.4" cylinder width -Requires RBR for operation
* Single adustable horizontal conveyor roller - 672 lbs/ft capacity
* Worm chip conveyor for long chips - includes chip pan **16 week lead time
* 5 ft. Tape work stop (Mounts on Conveyor)
* 10 ft. Tape work stop (Mounts on Conveyor)
* 5 ft. Digital work stop (Mounts on Conveyor)
* 10 ft. Digital work stop (Mounts on Conveyor)
* Wear parts service kit - contains wear plates, guides, band brushes
* Chip pan with drain
* Handle for chip box
* Magnetic wand chip remover
* Additional USB stick of manuals
* A Nationally Recognized Testing Laboratory (NRTL) is an independent third-part laboratory recognized by the United States Occupational Safety and Health Administration (OSHA) to test and certify products to applicable product safety standards
* DoALL Cut Above 10 Year Warranty Annual Investment
